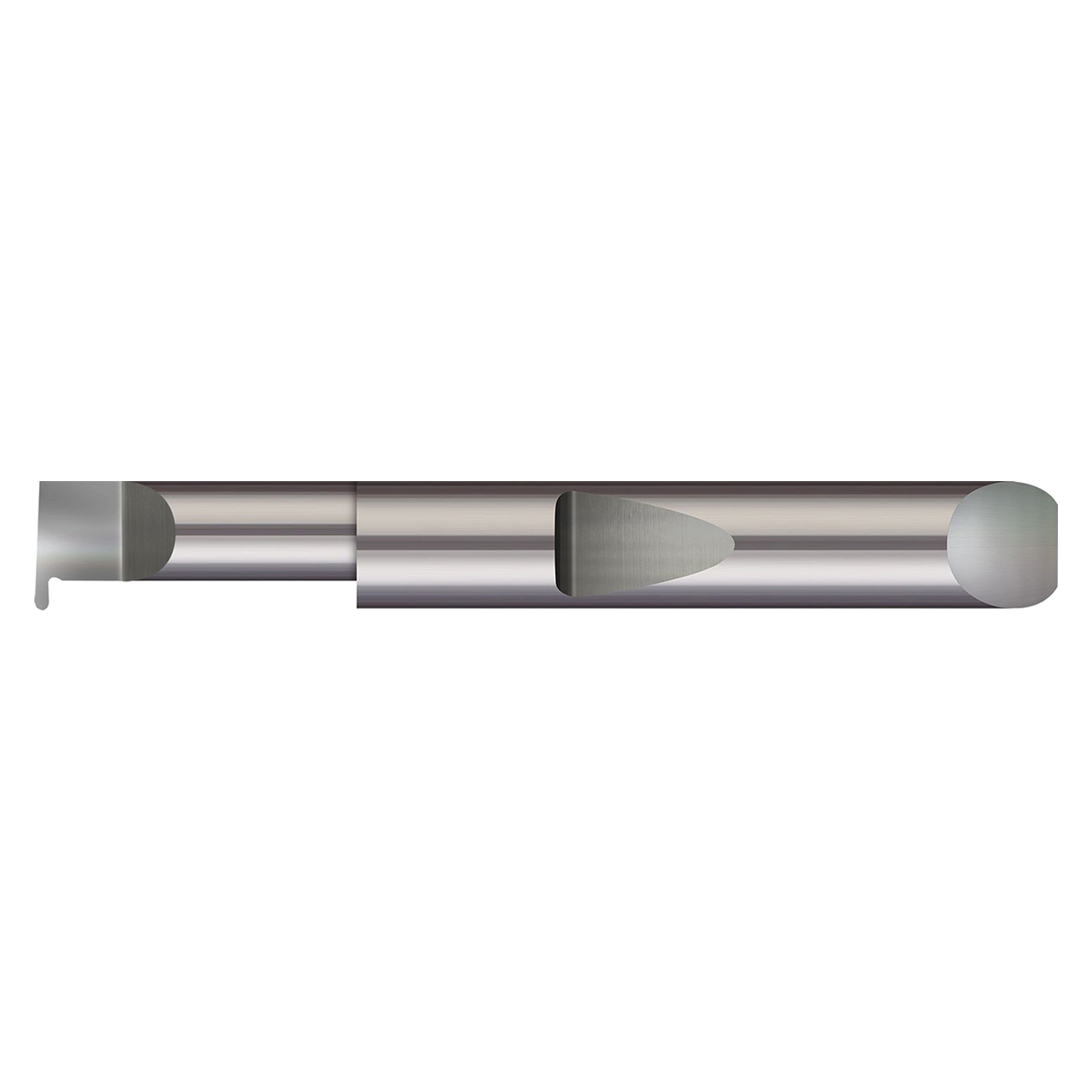

Product Specifications
| Manufacturer Part Number | QFR-7847 |
| Minimum Bore Diameter (Decimal Inch) | 0.3920" |
| Maximum Bore Diameter (Decimal Inch) | 0.500" |
| Maximum Bore Diameter (Inch) | 1/2" |
| Projection (Decimal Inch) | 0.1500" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Projection (Decimal Inch) | 3/8" |
| Shank Diameter(mm) | 0.1825" |
| Radius (Decimal Inch) | 0.0435" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 0.853" |
| Neck Diameter (Decimal Inch) | 0.2200" |
| Overall Length (Decimal Inch) | 2.00" |
| Overall Length (Inch) | 2" |
| Tooth Width (Decimal Inch) | 0.0870" |
| Coating | Uncoated |
| Product Type | Grooving Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Projection (Inch):
5/32"
Projection (Decimal Inch):
0.1500"
Projection (mm):
3.81mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Finish/Coating:
Uncoated
