Product Specifications
| Manufacturer Part Number | QIAT2-2000-8 |
| Minimum Bore Diameter (Decimal Inch) | 0.500" |
| Minimum Bore Diameter (Inch) | 1/2" |
| Head Width (Decimal Inch) | 0.478" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.000" |
| Maximum Bore Depth (Inch) | 2" |
| Projection (Decimal Inch) | 0.120" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Inch) | 1/2" |
| Centerline Offset | 0.2280" |
| Offset (Decimal Inch) | 0.064" |
| Flat Width (Decimal Inch) | 0.041" |
| Length from Holder (Decimal Inch) | 2.040" |
| Neck Diameter (Decimal Inch) | 0.358" |
| Overall Length (Decimal Inch) | 3.500" |
| Overall Length (Inch) | 3-1/2" |
| Thread Per Inch | 8 TPI |
| Coating | Uncoated |

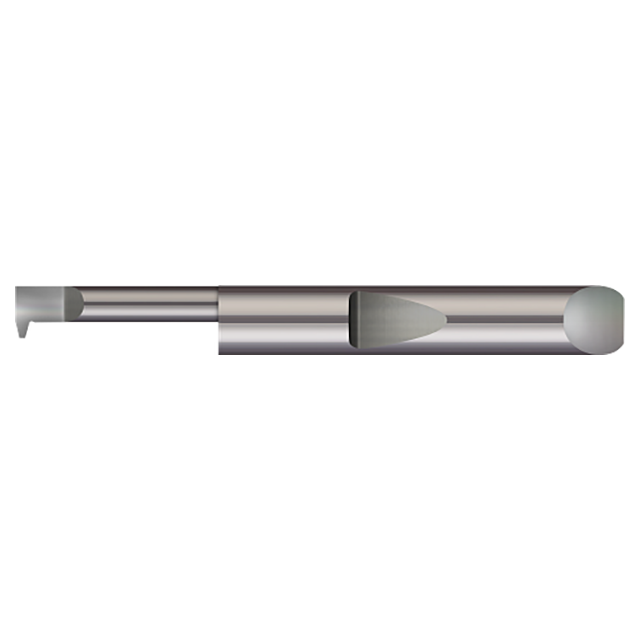

| Product Type | Quick Change Threading Tool - ACME Thread |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Inch):
1/2"
Minimum Bore Diameter (Decimal Inch):
0.5000"
Minimum Bore Diameter (mm):
12.7mm
Head Width (Inch):
11/23"
Head Width (Decimal Inch):
0.4780"
Head Width (mm):
12.14mm
Maximum Bore Depth (Inch):
2"
Maximum Bore Depth (Decimal Inch):
2.0000"
Maximum Bore Depth (Inch):
50.80mm
Projection (Inch):
3/25"
Projection (Decimal Inch):
0.1200"
Projection (mm):
3.05mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
Uncoated
interval quantity:
1
