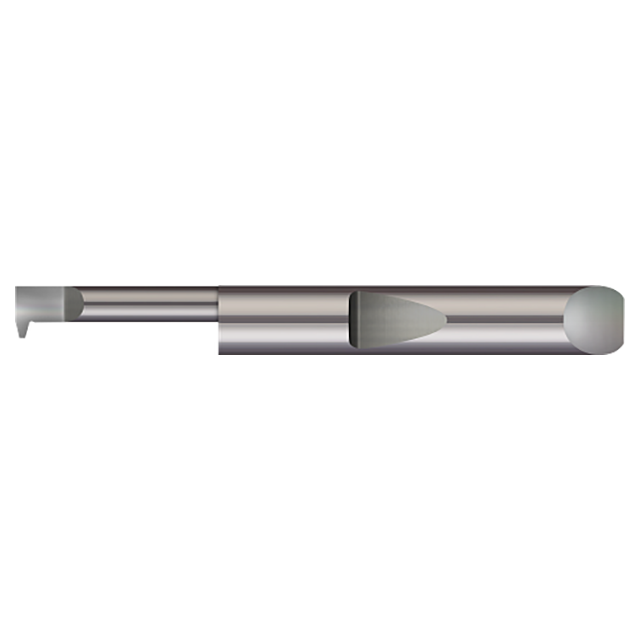

Micro 100 QIAT2-750-8 | 0.500" Minimum Bore Diameter x 0.750" Maximum Bore Depth x 1/2" Shank x 2-1/2" OAL Uncoated Quick Change Threading Tool

$100.25
Brand:
Micro 100
Minimum Bore Diameter (Inch):
1/2"
Minimum Bore Diameter (Decimal Inch):
0.5000"
Minimum Bore Diameter (mm):
12.70mm
Head Width (Inch):
11/23"
Head Width (Decimal Inch):
0.4780"
Head Width (mm):
12.14mm
Maximum Bore Depth (Inch):
3/4"
Maximum Bore Depth (Decimal Inch):
0.7500"
Maximum Bore Depth (Inch):
19.05mm
Projection (Inch):
3/25"
Projection (Decimal Inch):
0.1200"
Projection (mm):
3.05mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
Uncoated
interval quantity:
1
SKU:
25396074
UPC:
Weight:
0.30 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Micro 100 QIAT2-750-8 | 0.500" Minimum Bore Diameter x 0.750" Maximum Bore Depth x 1/2" Shank x 2-1/2" OAL Uncoated Quick Change Threading Tool

Product Specifications
Manufacturer Part NumberQIAT2-750-8
Minimum Bore Diameter (Decimal Inch)0.500"
Minimum Bore Diameter (Inch)1/2"
Head Width (Decimal Inch)0.478"
Cutting DirectionRight Hand
Maximum Bore Depth (Decimal Inch)0.750"
Maximum Bore Depth (Inch)3/4"
Projection (Decimal Inch)0.120"
Shank Diameter (Decimal Inch)0.500"
Shank Diameter (Inch)1/2"
Centerline Offset0.2280"
Offset (Decimal Inch)0.064"
Flat Width (Decimal Inch)0.041"
Length from Holder (Decimal Inch)1.040"
Neck Diameter (Decimal Inch)0.358"
Overall Length (Decimal Inch)2.500"
Overall Length (Inch)2-1/2"
Thread Per Inch8 TPI
CoatingUncoated
Product TypeQuick Change Threading Tool

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
