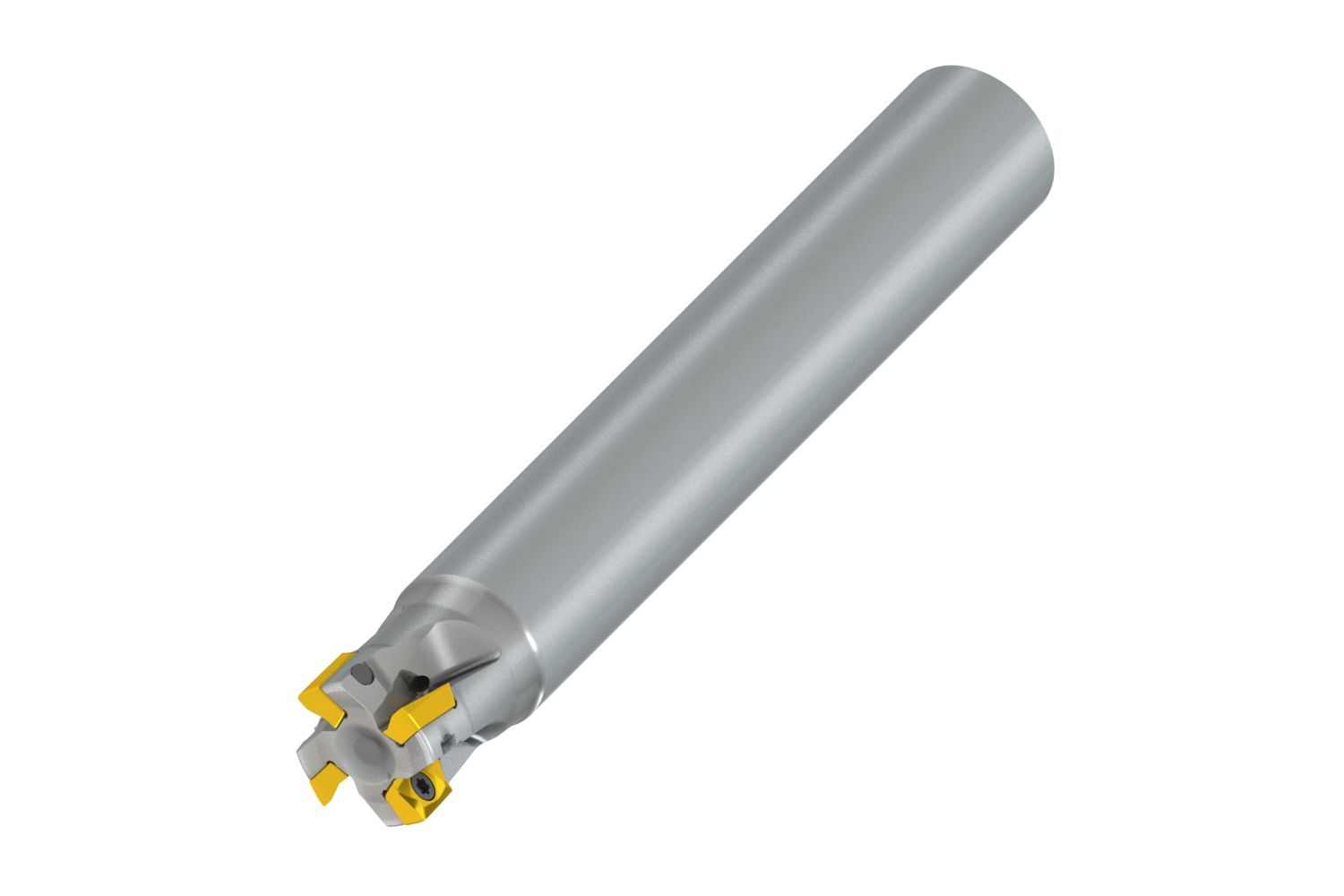

Shoulder mill with positve/negative geometry which utilises 4 of ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 15,88 mm FALSE with 90 Degree approach angle and 15,88 mm 0,625" parallel shank according to DIN 1835A, 19 mm 0,748" usable and 110 mm 4,330" overall length, through coolant for shallow shoulder milling, plunge milling, shallow slot milling, ramping, progressive plunge milling and helical milling.
Product Specifications
| EDP Number | 8017581 |
| Peripheral Effective Cutting Edge Count | 4 |
| Axial Rake Angle | 8 |
| Radial Rake Angle | -8 |
| Connection Diameter (mm) | 15.9 mm |
| Connection Diameter (Inch) | 0.625" |
| Cutting Diameter (mm) | 15.9 mm |
| Cutting Diameter (Inch) | 0.625" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (Inch) | 0.748 mm |
| Country of origin | Czech Republic |
