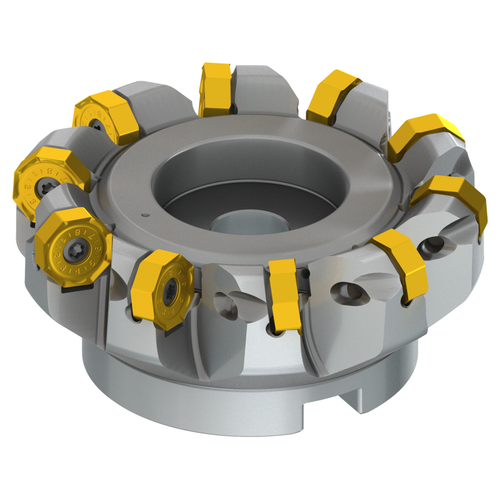

Face mill with positve/negative geometry which utilises 10 of SDET 13T3.., SDMT 13T3.. or XDET 13T3.. single-sided inserts, cutting diameter 100mm to maximum 112.9mm with 45 degree approach angle and 32mm connection bore according to DIN 8030-A, 50mm functional and, through coolant for face milling and chamfering with a maximum depth of cut of 6.4mm.
Product Specifications
| Manufacturer Part Number | 100A10R-S45SD13F-C |
| Cutting Diameter (Decimal Inch) | 3.937" |
| Cutting Diameter (mm) | 100.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 4.445" |
| Cutting Diameter Maximum (mm) | 112.90mm |
| Connection Diameter (mm) | 32.00mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Functional Length (mm) | 50.00mm |
| Counterbore Diameter Connection Bore (mm) | 45.00mm |
| Peripheral Effective Cutting Edge Count | 10 |
| Product Type | Face Mill Cutter |
| Country of Origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
Cutting Diameter (Inch):
3-15/16"
Cutting Diameter (Decimal Inch):
3.9370"
Cutting Diameter (mm):
100.00mm
