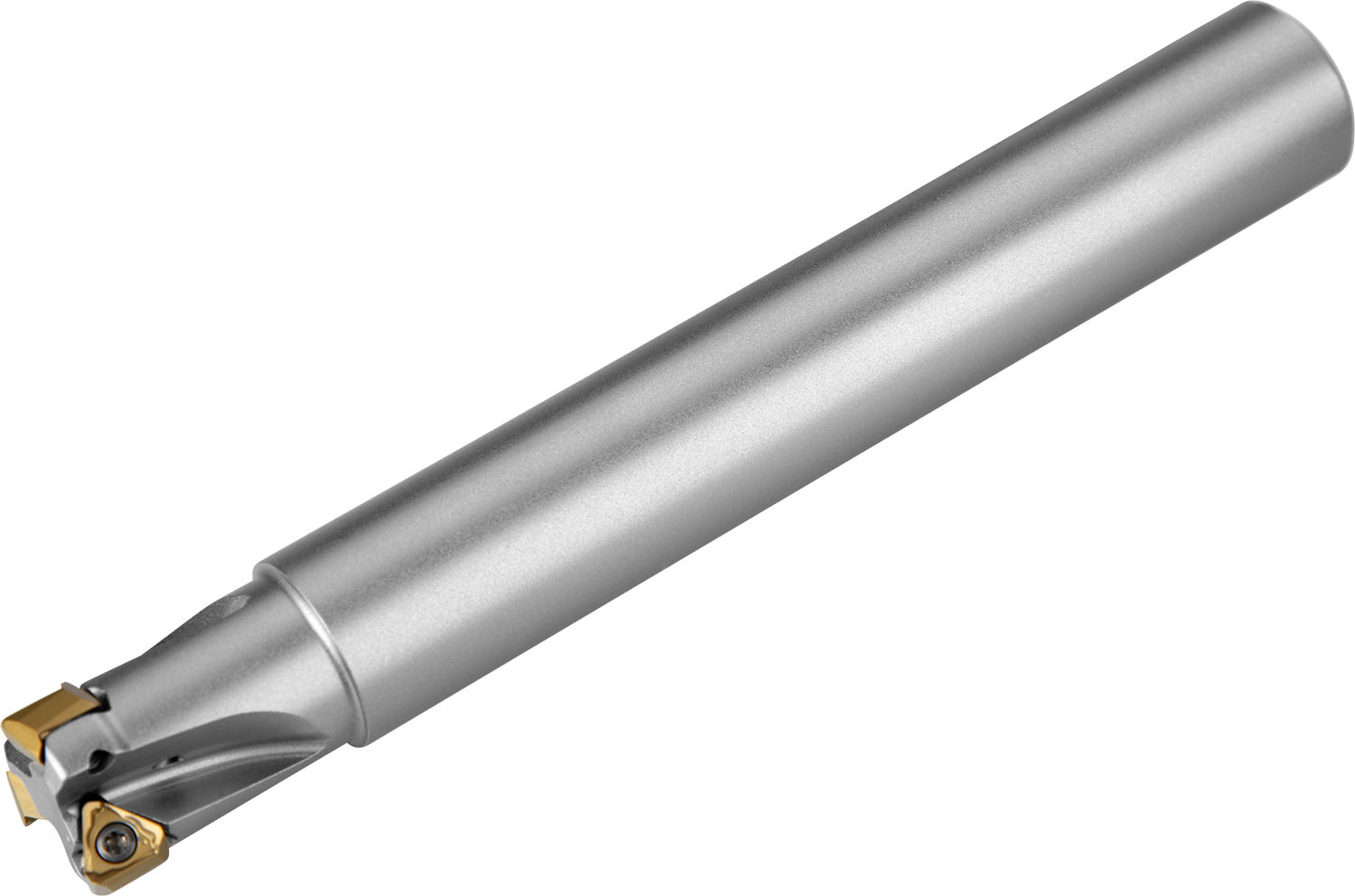

Shoulder face mill with double negative geometry which utilises 3 off TNGX 1004.. double-sided inserts, cutting diameter 1.000'' with 90° approach angle and 1.000'' parallel shank according to DIN 1835A, 1.339'' functional and 6.693'' overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''.
Product Specifications
| EDP Number | 7276933 |
| Peripheral Effective Cutting Edge Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -16 |
| Radial Rake Angle | -11 |
| Max Rotational Speed | 24700 |
| Connection Diameter (mm) | 25.4 mm |
| Connection Diameter (Inch) | 1" |
| Cutting Diameter (mm) | 25.4 mm |
| Cutting Diameter (Inch) | 1" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (Inch) | 1.339 mm |
