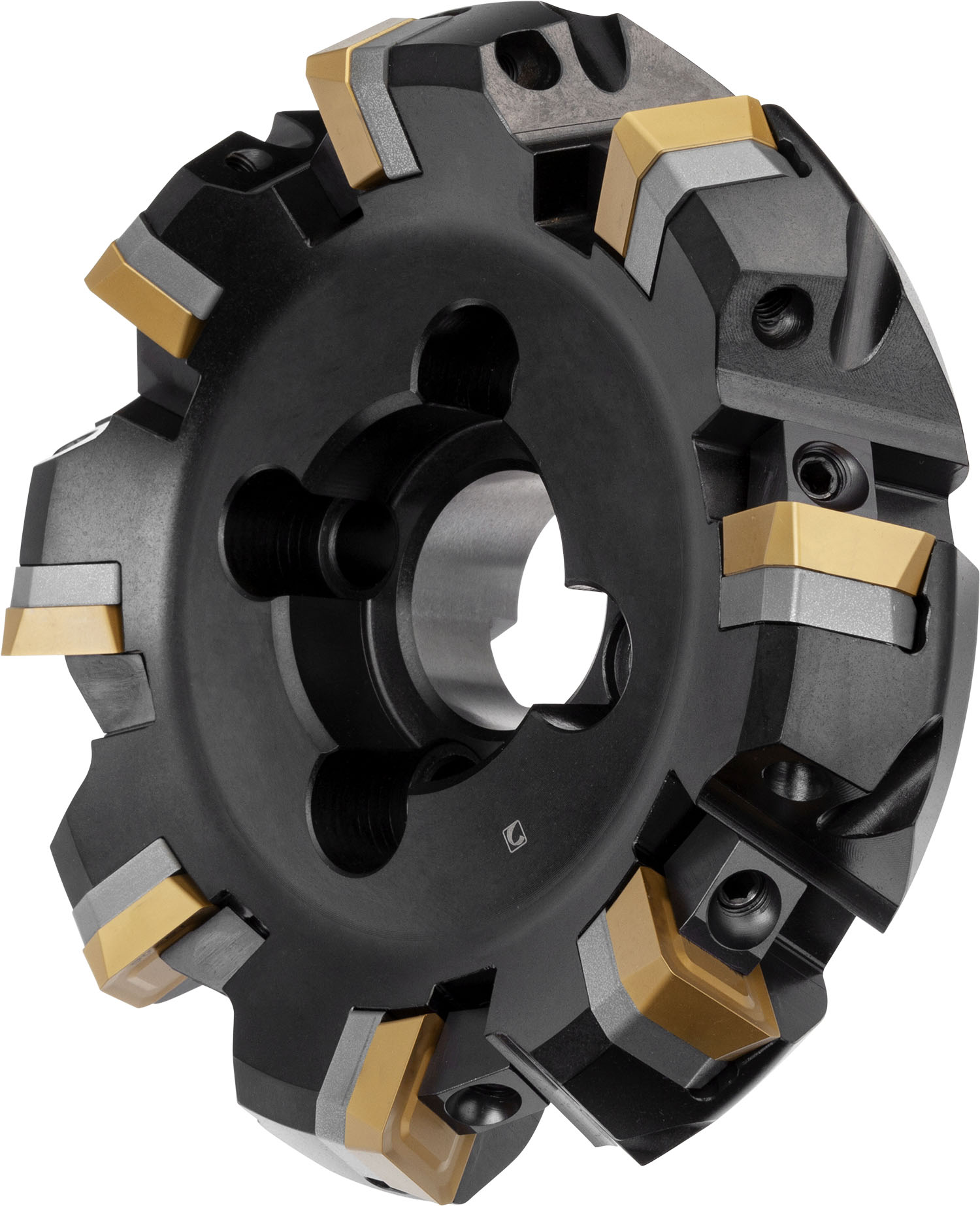

Face mill with positve/negative geometry which utilises 14 off SBKX 2207DZ.. or SBMR 2207DZ.. single-sided inserts, cutting diameter 12.000 to maximum 12.661'' with 60 Degree approach angle and 2.500'' connection bore according to DIN 8030-C, 3.150'' protrusion length, through coolant for face milling with a maximum depth of cut of .591''.
Product Specifications
| EDP Number | 6789687 |
| Peripheral Effective Cutting Edge Count | 14 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 9 |
| Radial Rake Angle | -9 |
| Connection Diameter (mm) | 63.5 mm |
| Connection Diameter (Inch) | 2.5" |
| Keyway Width (Inch) | 1" |
| Keyway Depth (Inch) | 0.559" |
| Diameter Bolt Circle 1 (Inch) | 4" |
| Cutting Diameter (mm) | 304.8 mm |
| Cutting Diameter (Inch) | 12" |
| Max Cutting Diameter (Inch) | 12.661" |
| Functional Length (Inch) | 3.15" |
| Clamping Type Code | System F |
| Diameter Bolt Circle 2 (Inch) | 7" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
