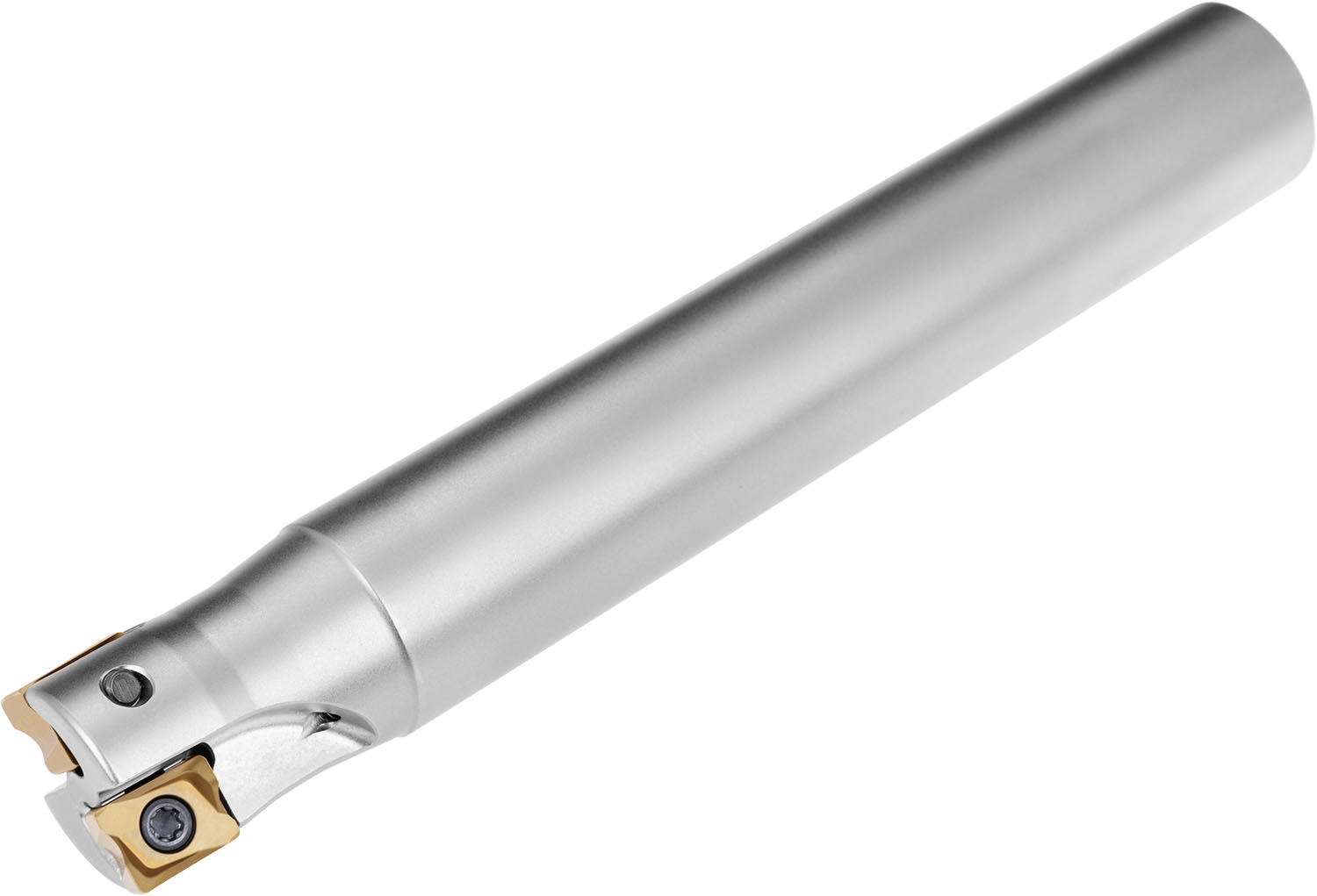

Shoulder mill with double negative geometry which utilises 2 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 1.250'' with 90 Degree approach angle and 1.250'' parallel shank according to DIN 1835A, 3.543'' functional and 7.677'' overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .354''.
Product Specifications
| EDP Number | 6793011 |
| Peripheral Effective Cutting Edge Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -15 |
| Max Rotational Speed | 17300 |
| Connection Diameter (mm) | 31.8 mm |
| Connection Diameter (Inch) | 1.25" |
| Cutting Diameter (mm) | 31.8 mm |
| Cutting Diameter (Inch) | 1.25" |
| Overall Length (mm) | 145 mm |
| Overall Length (Inch) | 5.709" |
| Usable Length (Inch) | 3.543 mm |
| Country of origin | Czech Republic |
