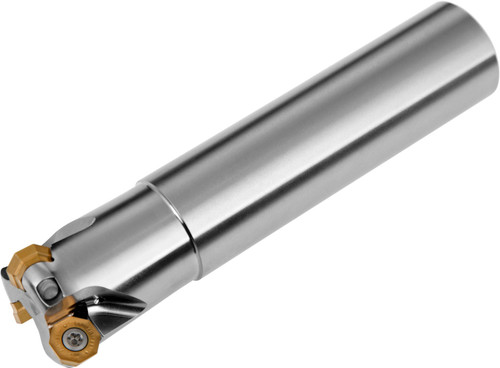

Copy face mill with positve/negative geometry which utilises 3 off OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter .961'' with 45 / 90° approach angle and 1.000'' parallel shank according to DIN 1835A, 1.772'' functional and 5.000'' overall length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of .118 (.236/.394)''.
Product Specifications
| EDP Number | 7546855 |
| Peripheral Effective Cutting Edge Count | 3 |
| Coolant Supply Property | 1 |
| Tool Cutting Edge Angle | 45 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | 8 |
| Max Rotational Speed | 17000 |
| Connection Diameter (mm) | 25.4 mm |
| Connection Diameter (Inch) | 1" |
| Cutting Diameter (mm) | 24.4 mm |
| Cutting Diameter (Inch) | 0.961" |
| Max Cutting Diameter (Inch) | 1.25" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (Inch) | 1.772 mm |
