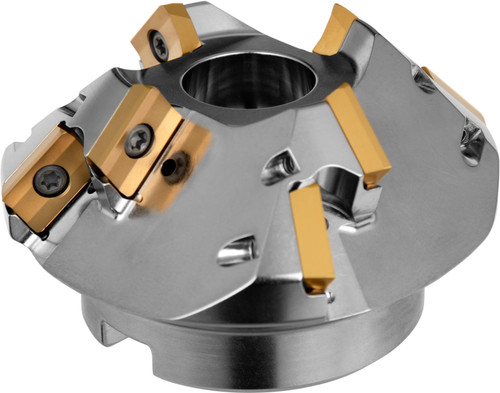

Chamfer mill with positve/negative geometry which utilises 8 off XPHT 1604.. single-sided inserts, cutting diameter 2.000 to maximum 3.102'' with 60° approach angle and 1.000'' connection bore according to DIN 8030, 1.969'' protrusion length, through coolant for chamfering with a maximum depth of cut of .984''.
Product Specifications
| EDP Number | 6790070 |
| Peripheral Effective Cutting Edge Count | 8 |
| Cutting Pitch Differential | 1 |
| Max Depth of Cut (Inch) | 0.984" |
| Flute Count | 4 |
| Coolant Supply Property | 1 |
| Tool Cutting Edge Angle | 60 |
| Axial Rake Angle | 4 |
| Radial Rake Angle | -5 |
| Max Rotational Speed | 13400 |
| Connection Diameter (mm) | 25.4 mm |
| Connection Diameter (Inch) | 1" |
| Counterbore Diameter Connection Bore (Inch) | 0.827" |
| Keyway Width (Inch) | 0.382" |
| Keyway Depth (Inch) | 0.224" |
| Cutting Diameter (mm) | 50.8 mm |
| Cutting Diameter (Inch) | 2" |
| Max Cutting Diameter (Inch) | 3.102" |
| Functional Length (Inch) | 1.969" |
