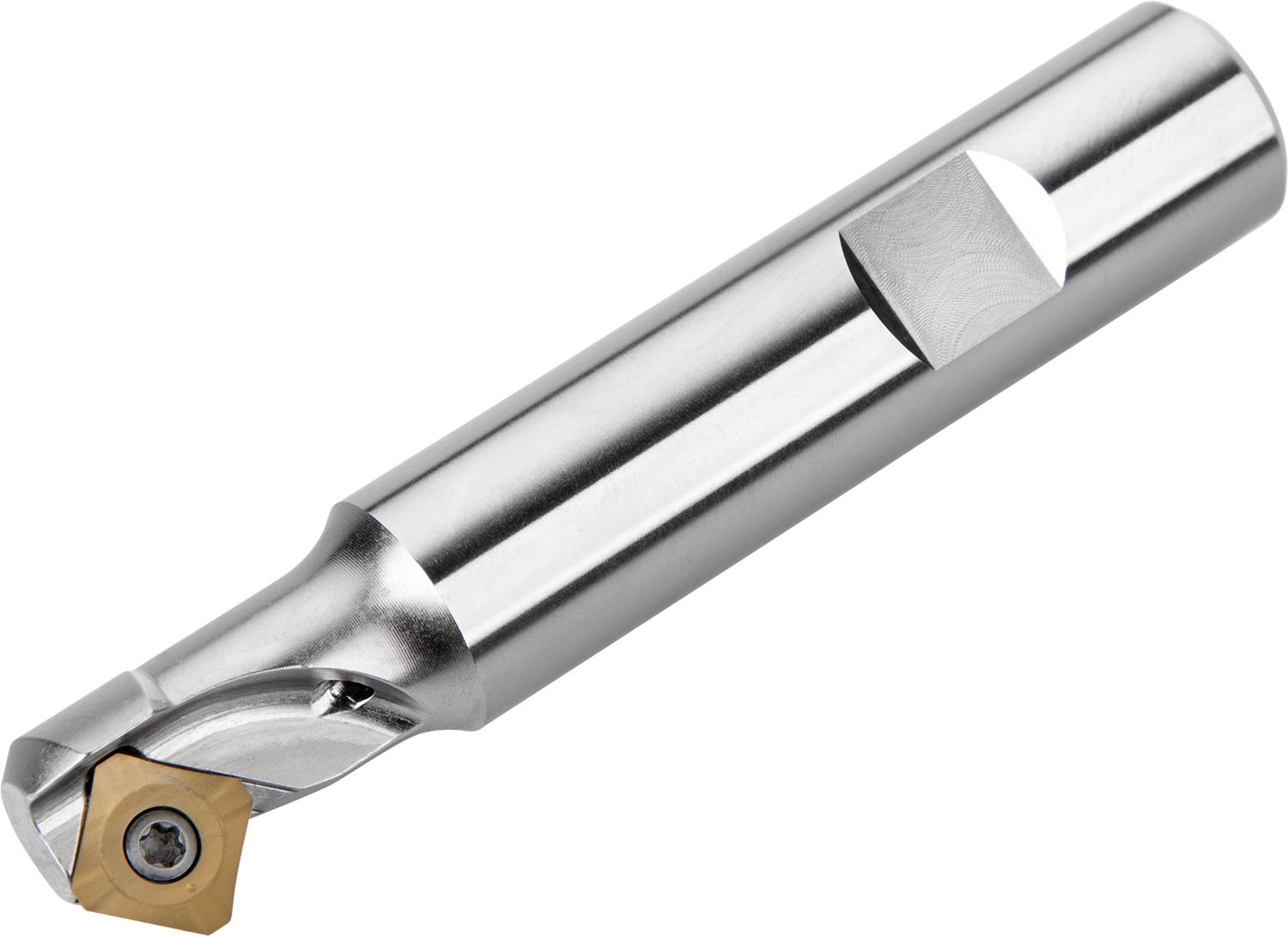

Copy end mill which utilises 1 off RC 20 or RC 20-F single-sided insert, cutting diameter 20 mm with 25 mm parallel shank according to DIN 1835A, 33.5 mm functional and 190 mm overall length for copy milling with a maximum depth of cut of 0.6-3.2 mm.
Product Specifications
| EDP Number | 6756722 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 1 |
| Max Rotational Speed | 16000 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Max Cutting Diameter (mm) | 20 mm |
| Overall Length (mm) | 125 mm |
| Overall Length (Inch) | 4.902" |
| Usable Length (mm) | 33.5 mm |
| Country of origin | Czech Republic |
