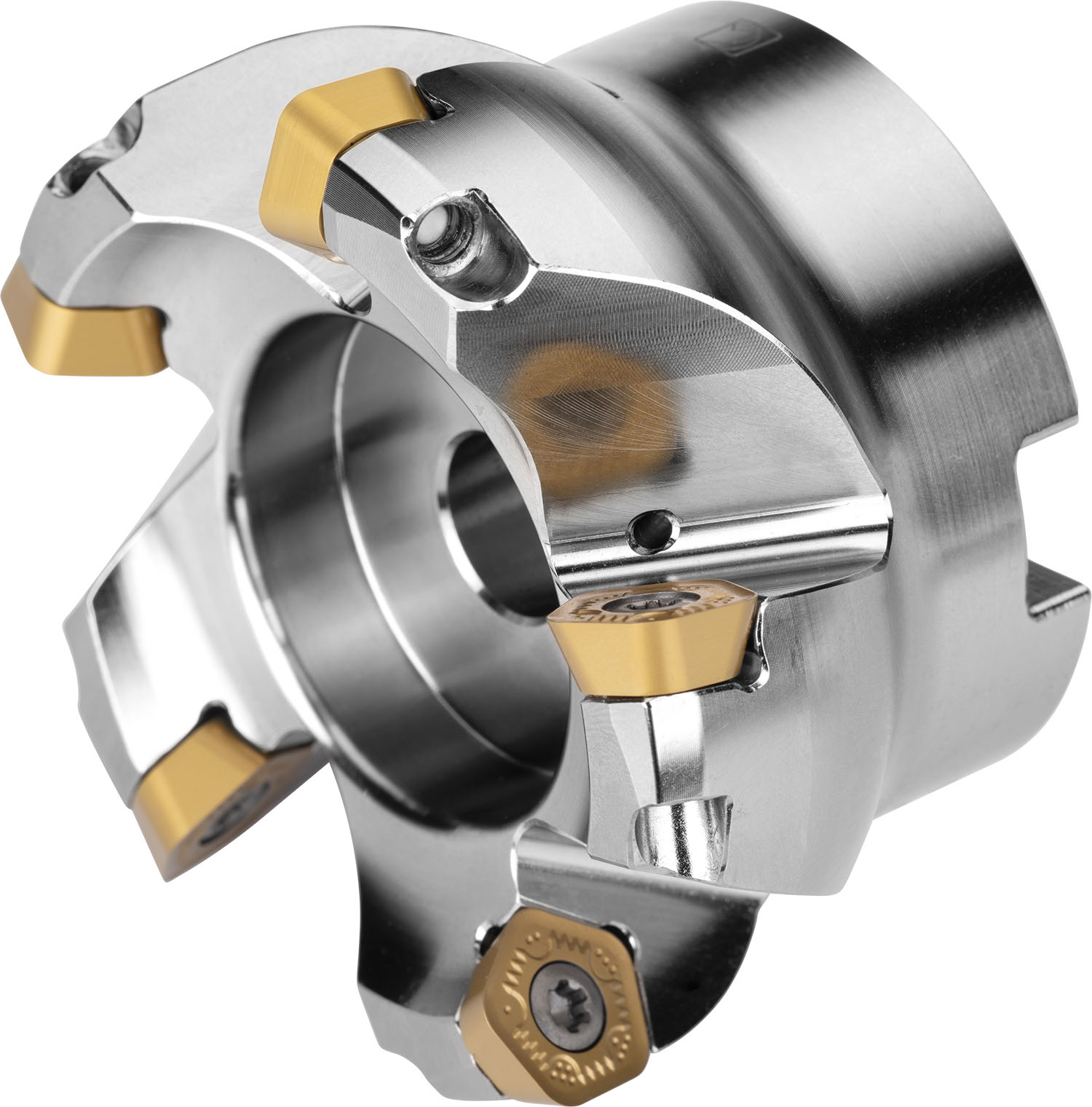

High feed cutter with positve/negative geometry which utilises 5 off PD.X 0905ZE.., PDKT 0905.. or PDMW 0905.. single-sided inserts, cutting diameter 50 mm with 19° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant for face milling with a maximum depth of cut of 2.0 mm.
Product Specifications
| EDP Number | 6920667 |
| Peripheral Effective Cutting Edge Count | 5 |
| Insert Index Count | 5 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10 |
| Radial Rake Angle | -3 |
| Max Rotational Speed | 10500 |
| Connection Diameter (mm) | 22 mm |
| Connection Diameter (Inch) | 0.866" |
| Counterbore Diameter Connection Bore (mm) | 18 mm |
| Cutting Diameter (mm) | 35.3 mm |
| Max Cutting Diameter (mm) | 50 mm |
| Cutting Diameter (Inch) | 1.39" |
| Functional Length (mm) | 40 mm |
