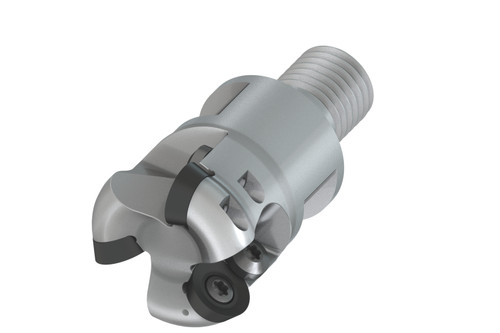

Copy face mill with double negative geometry which utilises 7 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 52 mm with 22 mm connection bore according to DIN 8030-A, 40 mm functional and, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2.5 mm.
Product Specifications
| EDP Number | 8025252 |
| Peripheral Effective Cutting Edge Count | 7 |
| Insert Index Count | 7 |
| Maximum Depth of Cut (mm) | 2.5 mm |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 19100 |
| Connection Diameter (mm) | 22 mm |
| Connection Diameter (Inch) | 0.866" |
| Counterbore Diameter Connection Bore (mm) | 18 mm |
| Keyway Width (mm) | 10.4 mm |
| Keyway Depth (mm) | 10.4 mm |
| Cutting Diameter (mm) | 42 mm |
| Max Cutting Diameter (mm) | 52 mm |
| Cutting Diameter (Inch) | 1.654" |
| Functional Length (mm) | 40 mm |
