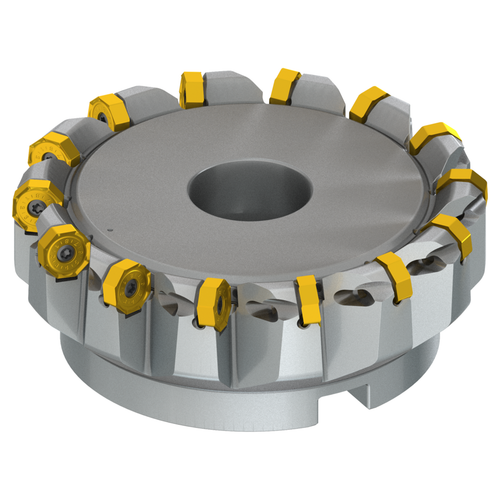

Face mill with double negative geometry which utilises 12 of ONMX 0605.., ONMX 0605..-W or SNMX 1705.. double-sided inserts, cutting diameter 6.000" to maximum 6.425" with 43 degree approach angle and 2.000" connection bore according to DIN 8030-A, 2.480" functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 0,157", SN.. 0,276".
Product Specifications
| Manufacturer Part Number | 600A12R-IS45ON06-C |
| Cutting Diameter (Decimal Inch) | 6.000 |
| Cutting Diameter (mm) | 152.40mm |
| Cutting Diameter Maximum (Decimal Inch) | 6.425" |
| Cutting Diameter Maximum (mm) | 163.20mm |
| Connection Diameter (mm) | 50.80mm |
| Tool Cutting Edge Angle (Degree) | 43 Degree |
| Functional Length (mm) | 63.00mm |
| Counterbore Diameter Connection Bore (mm) | 42.00mm |
| Peripheral Effective Cutting Edge Count | 12 |
| Product Type | Indexable Face Mill |
| Country of Origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
Cutting Diameter (Inch):
6"
Cutting Diameter (Decimal Inch):
6.0000"
Cutting Diameter (mm):
152.40mm
