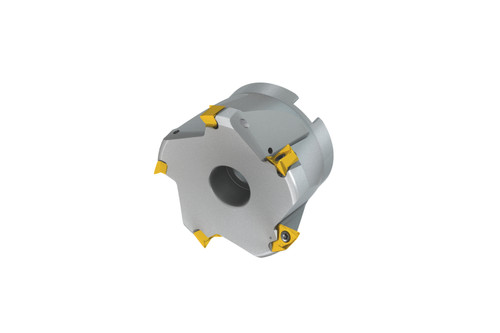

High feed cutter with positve/negative geometry which utilises 5 off ZDEW 1204.. single-sided inserts, cutting diameter 63 mm with 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for face milling.
Product Specifications
| EDP Number | 6759669 |
| Peripheral Effective Cutting Edge Count | 5 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 5 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10 |
| Radial Rake Angle | -6 |
| Max Rotational Speed | 12500 |
| Connection Diameter (mm) | 22 mm |
| Connection Diameter (Inch) | 0.866" |
| Keyway Width (mm) | 10.4 mm |
| Keyway Depth (mm) | 6.4 mm |
| Cutting Diameter (mm) | 45.5 mm |
| Max Cutting Diameter (mm) | 63 mm |
| Cutting Diameter (Inch) | 1.791" |
| Functional Length (mm) | 40 mm |
