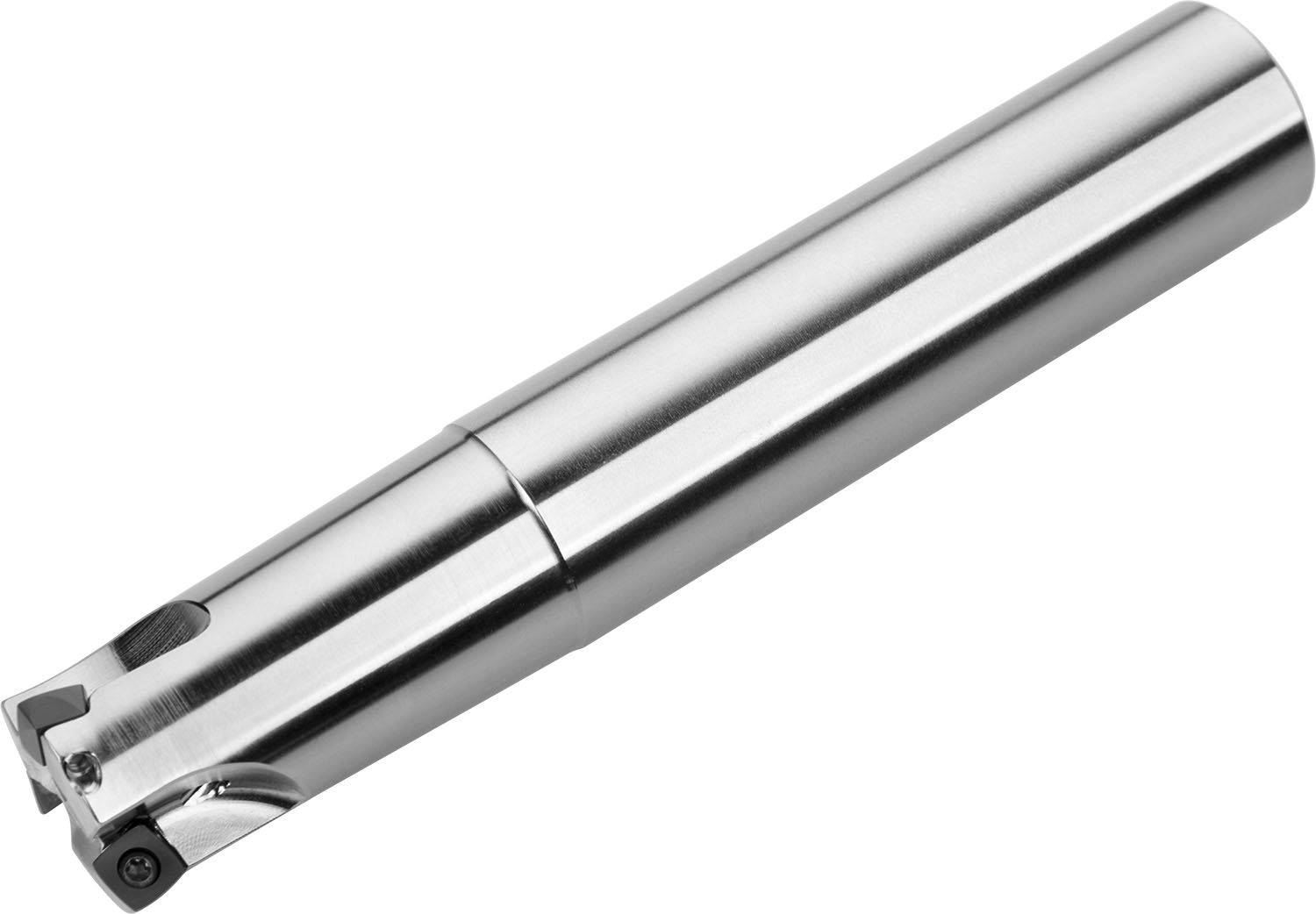

Chamfer mill with double negative geometry which utilises 1 off SOMT 09T3.. single-sided insert, cutting diameter 8 to maximum 20.5 mm with 45 Degree approach angle and 16 mm Weldon shank according to DIN 1835B, 90 mm overall length, through coolant for chamfering with a maximum depth of cut of 4.5 mm.
Product Specifications
| EDP Number | 6758332 |
| Peripheral Effective Cutting Edge Count | 1 |
| Insert Index Count | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 37700 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Cutting Diameter (mm) | 8 mm |
| Max Cutting Diameter (mm) | 20.5 mm |
| Cutting Diameter (Inch) | 0.315" |
| Overall Length (mm) | 66 mm |
| Overall Length (Inch) | 2.598" |
| Usable Length (mm) | 27 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
