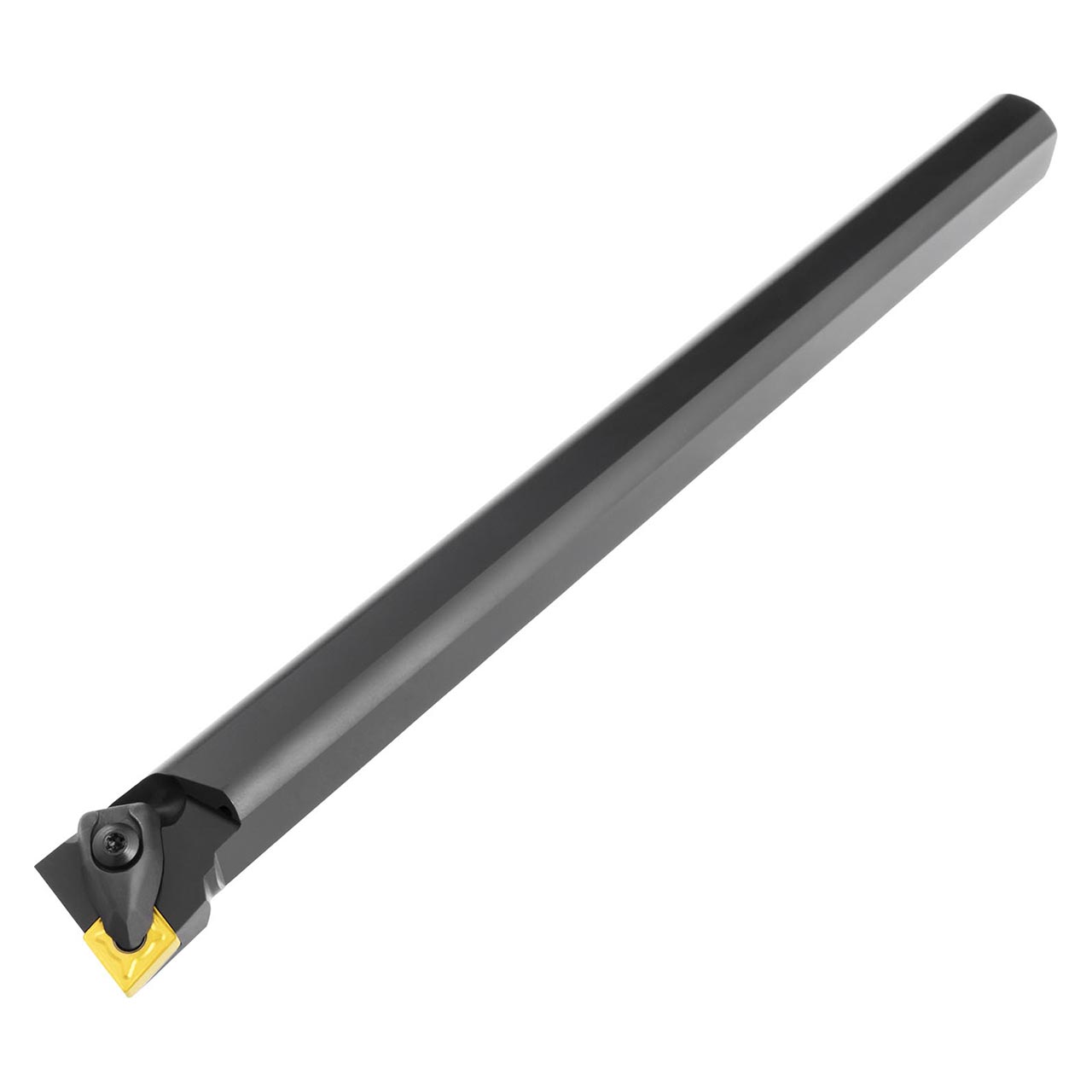

Double clamp boring bar for holding a 80 Degree rhombus negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation CN.. 43. ), right hand 95 Degree side and end cutting with off-set shank, steel with coolant hole, 1.1/4'' diameter x 12'' long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6788493 |
| Functional Width (Inch) | 0.765" |
| Coolant Supply Property | 1 |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -11 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 31.8 mm |
| Connection Diameter (Inch) | 1.25" |
| Shank Height (Inch) | 1.181" |
| Minimum Bore Diameter (Inch) | 1.468" |
| Functional Length (Inch) | 12" |
| Head Length (Inch) | 1.299" |
| Clamping Type Code | System D |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Height (Inch):
1-3/16"
Shank Height (Decimal Inch):
1.1810"
Shank Height (mm):
30mm
