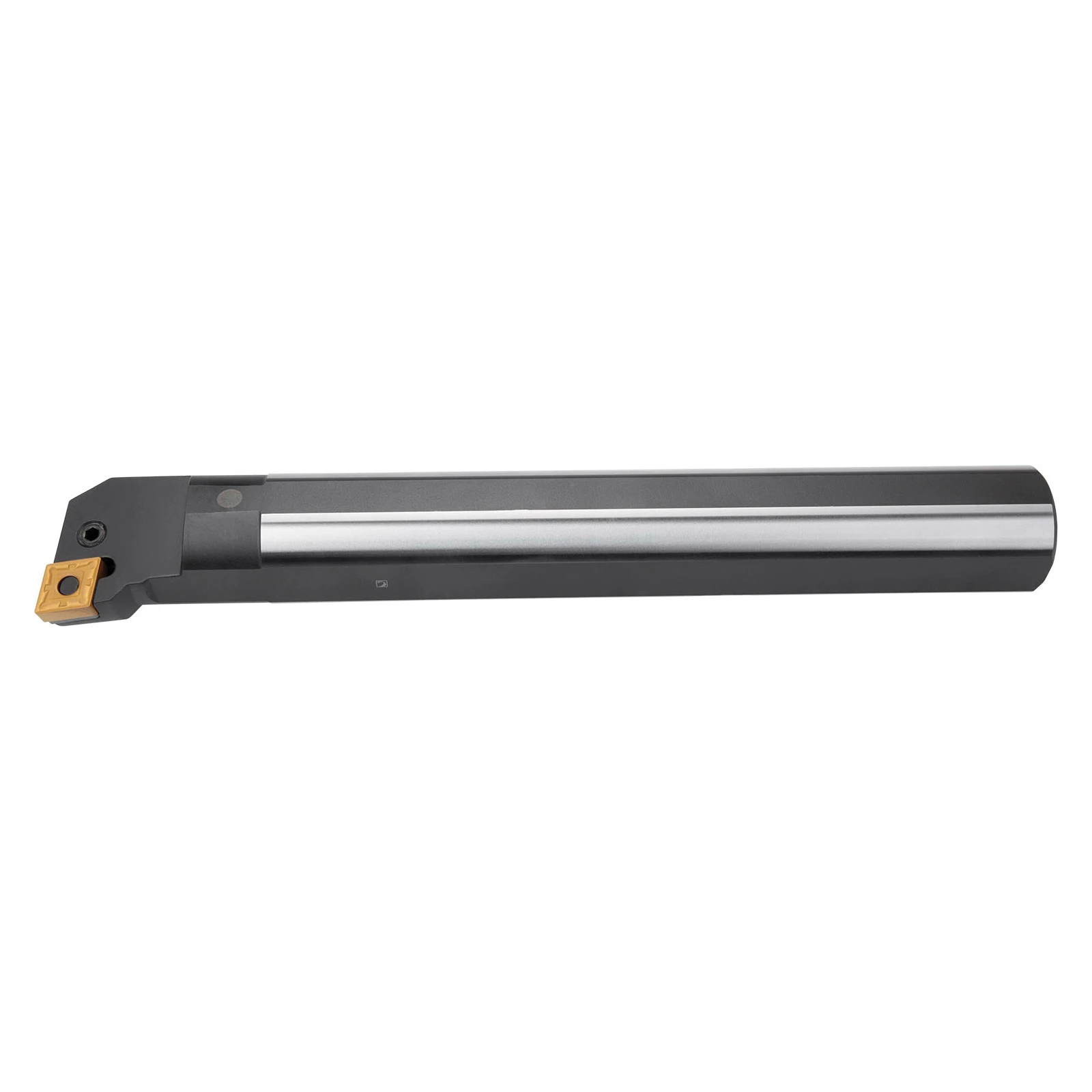

Lever lock boring bar for holding a 80 Degree rhombus negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation CN.. 1204.. ), right hand 95 Degree side and end cutting with off-set shank, steel with coolant hole, 40 mm diameter x 300 mm long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6757112 |
| Functional Width (mm) | 27 mm |
| Coolant Supply Property | 1 |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -12 |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Shank Height (mm) | 38 mm |
| Shank Width (mm) | 38 mm |
| Minimum Bore Diameter (mm) | 50 mm |
| Functional Length (mm) | 300 mm |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
