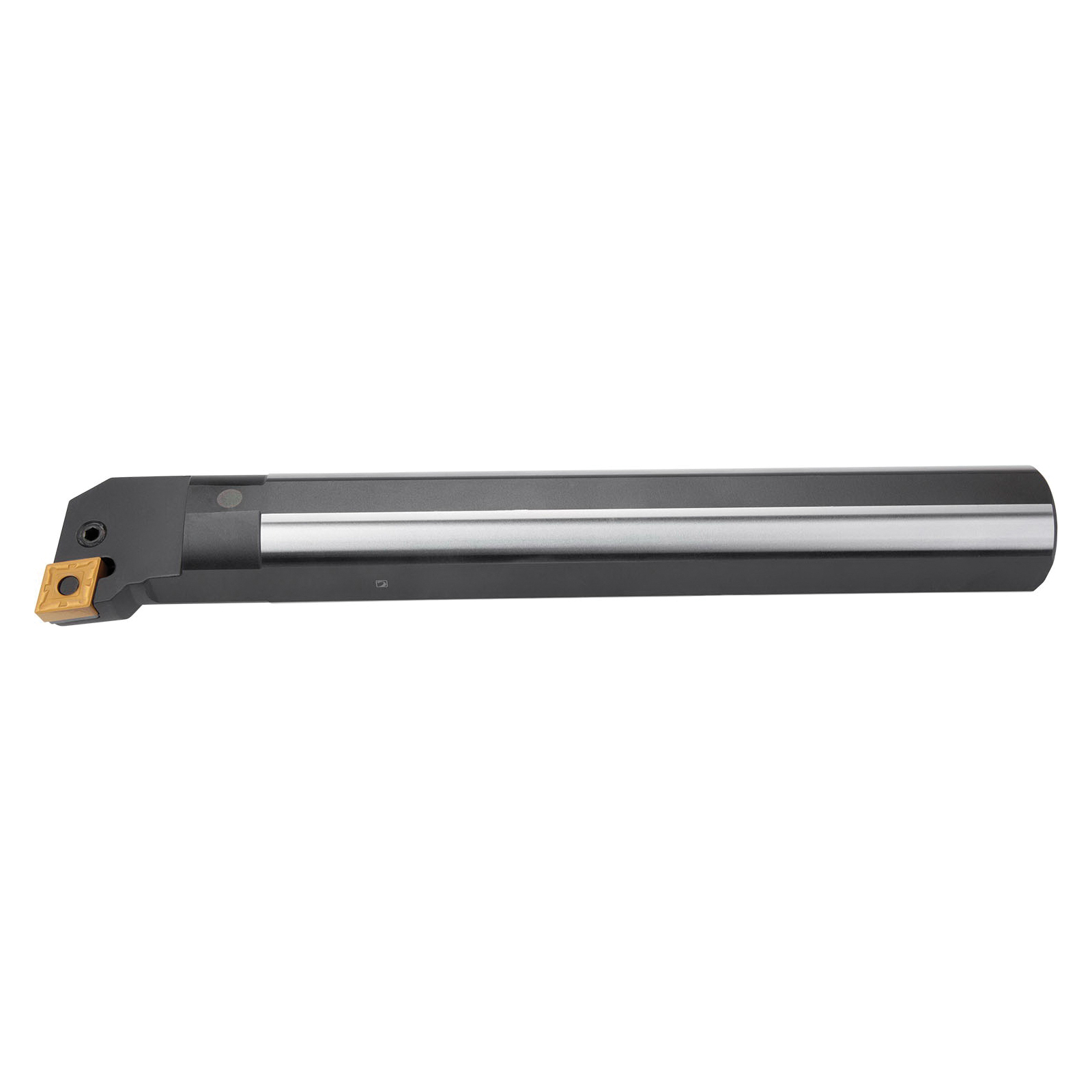

Lever lock boring bar for holding a 80 Degree rhombus negative insert with an inscribed circle diameter of 15.575 mm, 6.35 mm thick (ISO designation CN.. 1606.. ), right hand 95 Degree side and end cutting with off-set shank, steel with coolant hole, 60 mm diameter x 400 mm long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6757324 |
| Functional Width (mm) | 43 mm |
| Coolant Supply Property | 1 |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -12 |
| Connection Diameter (mm) | 60 mm |
| Connection Diameter (Inch) | 2.362" |
| Shank Height (mm) | 57 mm |
| Shank Width (mm) | 58.5 |
| Minimum Bore Diameter (mm) | 80 mm |
| Functional Length (mm) | 400 mm |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
