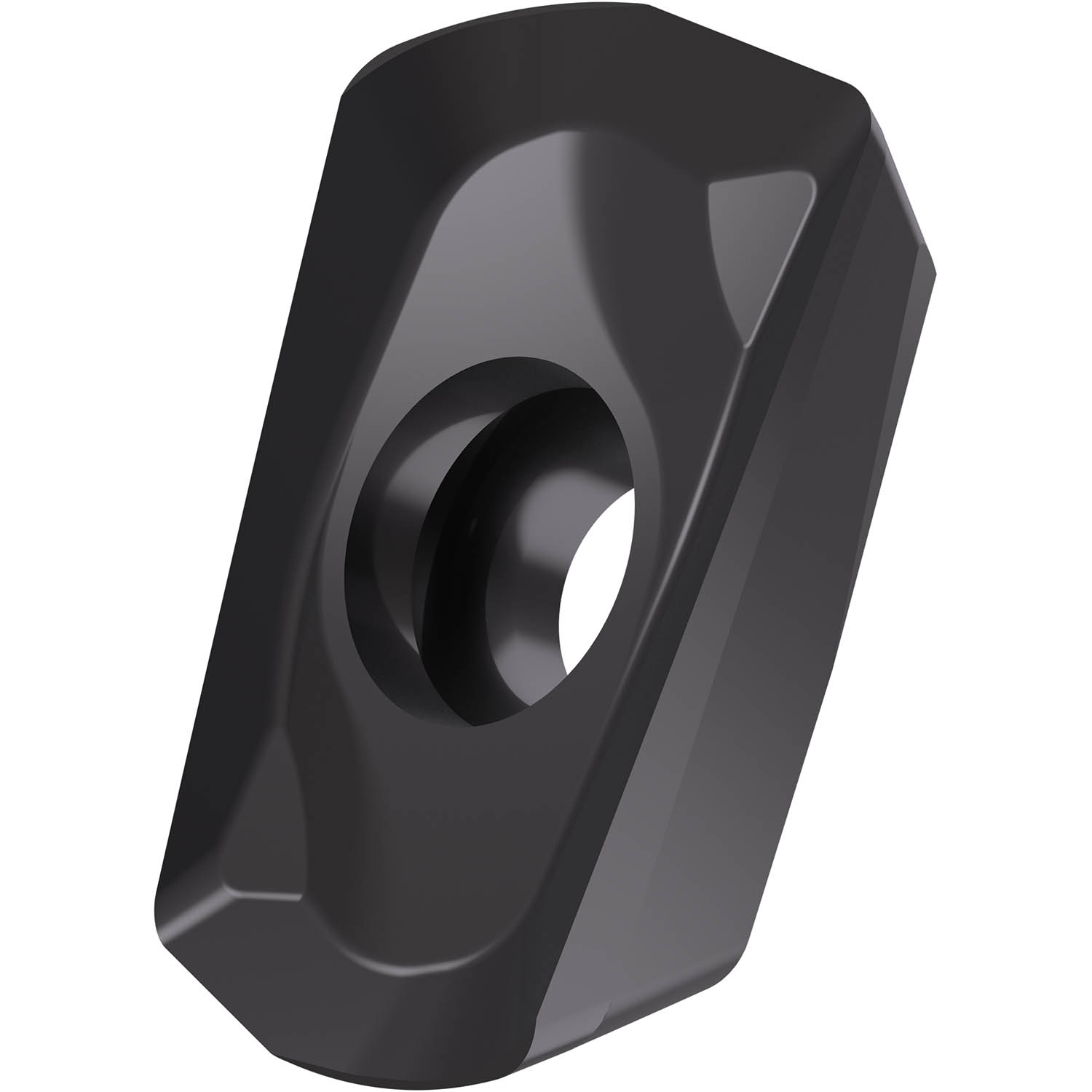

Pramet ADEX 11T308SR-HF:8215 | 0.114" Diameter x 0.15" Thickness Milling Insert

$17.45 $12.26
(You save $5.19)
Brand:
Pramet
interval quantity:
10
SKU:
23150730
UPC:
Weight:
0.07 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Single-sided milling insert ADEX 11T3, 85 Degree parallelogram and high-feed design for a maximum depth of cut of 0.6 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10-P20 for machining of steel with shoulder mills SAD11E.

Product Specifications
EDP Number6800779
Maximum Depth of Cut (mm)0.6 mm
Max Depth of Cut (Inch)0.024"
Coating Property1
Fixing Hole Diameter (mm)2.9 mm
Fixing Hole Diameter (Inch)0.114"
Cutting Edge Length (mm)10.67 mm
Cutting Edge Length (Inch)0.42"
Insert Width (mm)6.45 mm
Insert Width (Inch)0.254"
Insert Thickness (mm)3.82 mm
Insert Thickness (Inch)0.15"
Corner Radius (mm)0.8 mm
Corner Radius (Inch)0.031"
Coating ProcessPVD
Coating8215
Surface ColorPurple - Black
Min Depth of Cut (mm)0.1 mm
Min Depth of Cut (Inch)0.004"
Country of originCzech Republic
