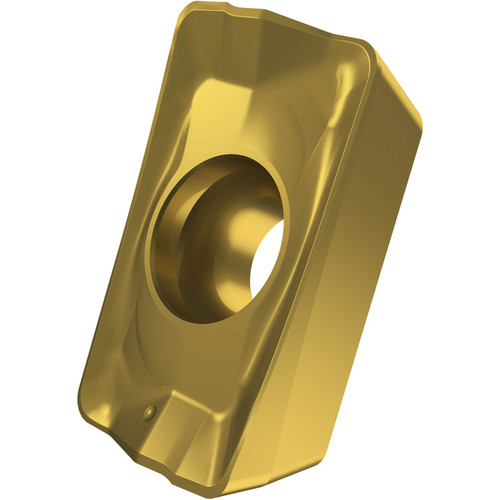

Pramet APKT 1604PDR-HM:M5315 | 0.181" Diameter x 0.223" Thickness Milling Insert

$19.45 $13.66
(You save $5.79)
Brand:
Pramet
interval quantity:
10
SKU:
23151194
UPC:
Weight:
0.02 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Single-sided milling insert APKT 1604 with chip-breakers, 85 Degree parallelogram for a maximum depth of cut of 13.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-K and HM geometry, M5315 MT-CVD coated WC-Co carbide within ISO-grade range K05-K25 for machining of cast-iron with shoulder mills SAP16D.

Product Specifications
EDP Number6754625
Maximum Depth of Cut (mm)13 mm
Max Depth of Cut (Inch)0.512"
Coating Property1
Fixing Hole Diameter (mm)4.6 mm
Fixing Hole Diameter (Inch)0.181"
Cutting Edge Length (mm)17 mm
Cutting Edge Length (Inch)0.669"
Insert Width (mm)9.44 mm
Insert Width (Inch)0.372"
Insert Thickness (mm)5.67 mm
Insert Thickness (Inch)0.223"
Corner Radius (mm)0.8 mm
Corner Radius (Inch)0.031"
Coating ProcessMT-CVD
CoatingM5315
Surface ColorBlack
Min Depth of Cut (mm)1 mm
Min Depth of Cut (Inch)0.039"
Country of originCzech Republic
