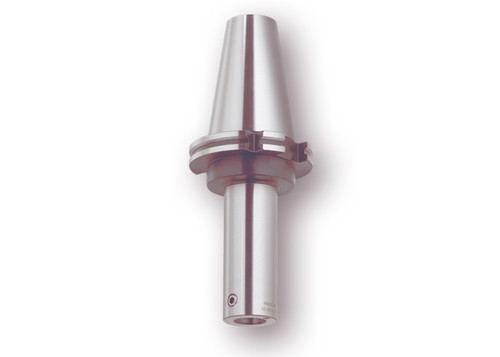

Tool shank for modular boring system size 54 with (DIN 69871) SK 50 taper shank according to ISO/DIS 7388-1, through coolant feed and 160 protrusion length (including the boring head ).
Product Specifications
| EDP Number | 6761498 |
| Coolant Supply Property | 1 |
| Connection Diameter Workpiece Side (mm) | 28 mm |
| Connection Size Code Machine Side | 54 |
| Body Diameter (mm) | 54 mm |
| Body Diameter (Inch) | 2.126" |
| Usable Length (mm) | 160 mm |
| Functional Length (mm) | 198 mm |
| Protruding Length (mm) | 132 mm |
| Country of origin | Czech Republic |
