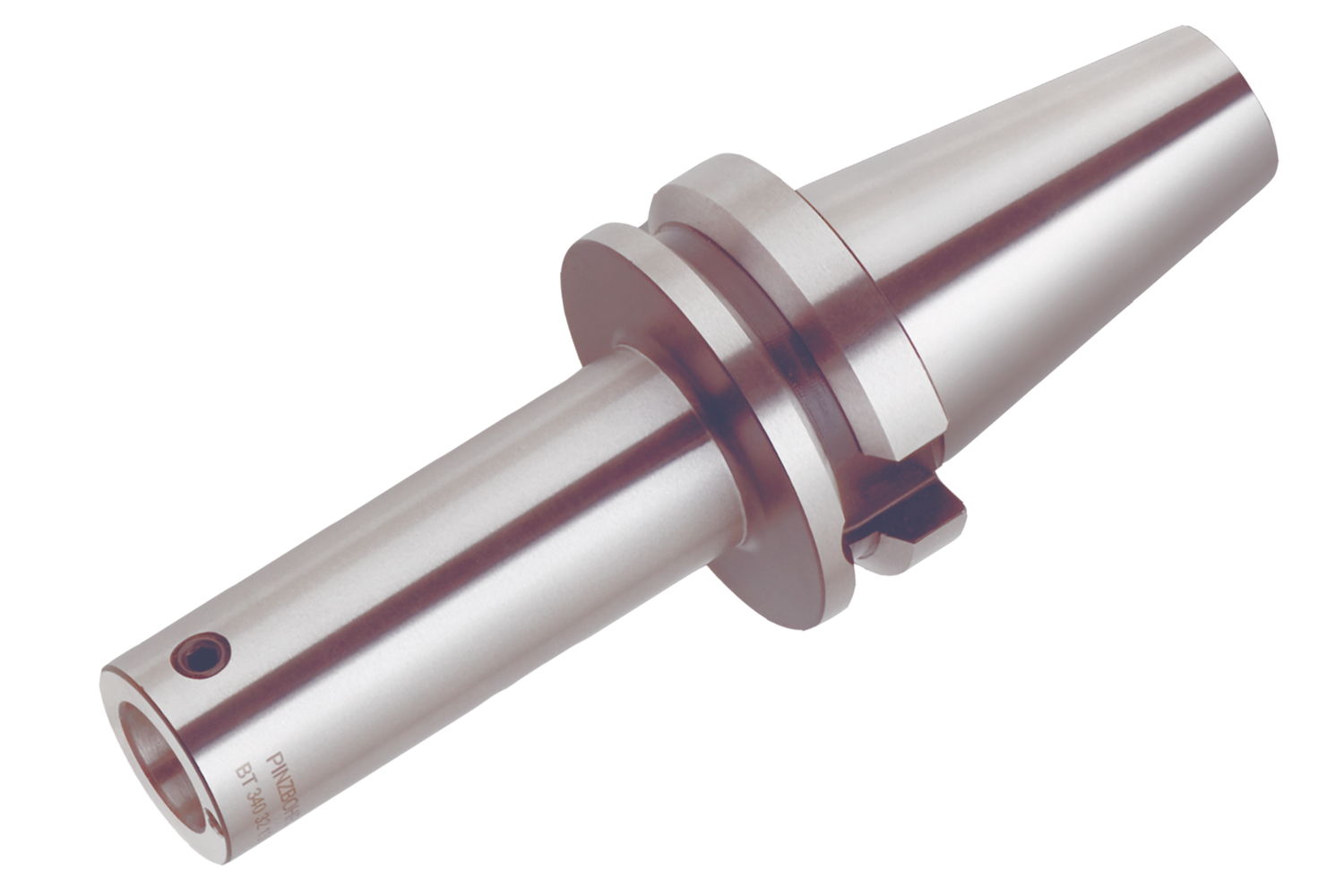

Tool shank for modular boring system size 85 with BT 40 taper shank according to JIS B 6339, through coolant feed and 200 protrusion length (including the boring head ).
Product Specifications
| EDP Number | 6761440 |
| Coolant Supply Property | 1 |
| Connection Diameter Workpiece Side (mm) | 50 mm |
| Connection Size Code Machine Side | 85 |
| Body Diameter (mm) | 85 mm |
| Body Diameter (Inch) | 3.346" |
| Usable Length (mm) | 200 mm |
| Functional Length (mm) | 220 mm |
| Protruding Length (mm) | 120 mm |
| Country of origin | Czech Republic |
