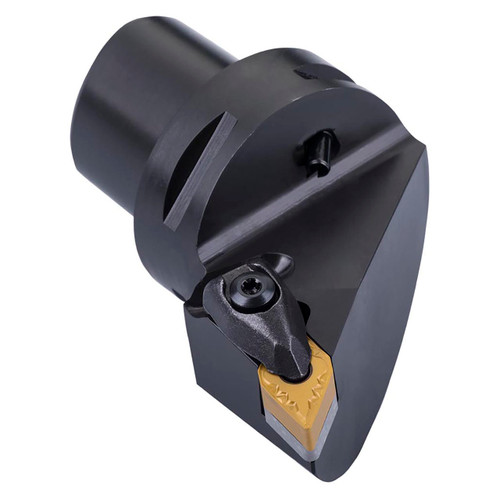

Double clamp turning tool for holding a 55 Degree rhombus negative insert with an inscribed circle diameter of 12.7 mm, 6.35 mm thick (ISO designation DN.. 1506.. ), right hand 93 Degree side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27 mm funtional width and 55 mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 7809783 |
| Functional Width (mm) | 27 mm |
| Functional Width (Inch) | 1.063" |
| Coolant Supply Property | 1 |
| Tool Cutting Edge Angle | 93 |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -7 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Minimum Bore Diameter (mm) | |
| Minimum Bore Diameter (Inch) | 4.331" |
| Functional Length (mm) | 55 mm |
| Functional Length (Inch) | 2.165" |
| Clamping Type Code | System D |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
