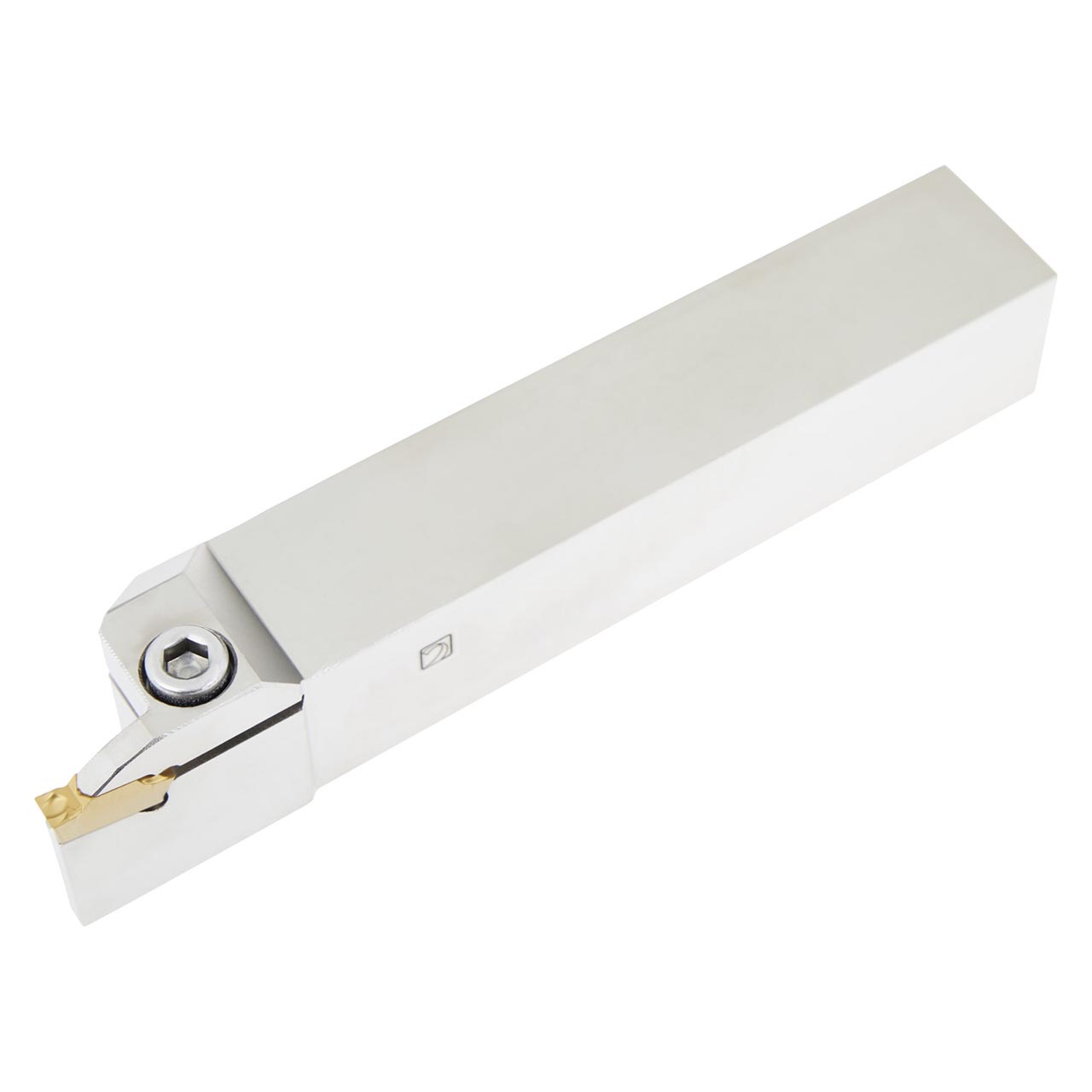

Top clamp grooving tool for holding a 30 mm long double or single ended insert with 8 mm cutting width (designation LCM. 0830.. ), right handed with insert parallel to the shank for a maximum parting diameter of 48 mm, shank height 32 mm, width 25 mm and tool length 170 mm for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off.
Product Specifications
| EDP Number | 6759692 |
| Functional Height (mm) | 32 mm |
| Cutting Width (mm) | 8 mm |
| Max Work Piece Parting Diameter (mm) | 48 mm |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 32 mm |
| Shank Width (mm) | 25 mm |
| Functional Length (mm) | 170 mm |
| Clamping Type Code | System G |
| Hand (Cutting Direction) | Right |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Height (Inch):
1-17/64"
Shank Height (Decimal Inch):
1.2600"
Shank Height (mm):
32mm
Shank Width/Diameter (Inch):
1-17/64"
Shank Width/Diameter (Decimal Inch):
1.2600"
Shank Width/Diameter (mm):
25mm
