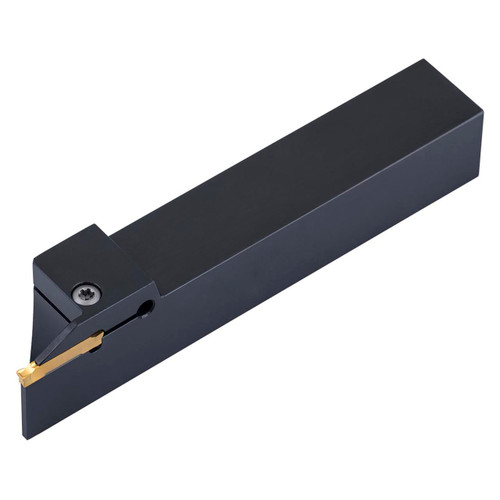

Pramet GL3-S16DFR-.79-3.15 | 6" Functional Length x 1" Shank Height Grooving Tool

$151.00 $131.44
(You save $19.56)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
interval quantity:
1
SKU:
23145766
UPC:
Weight:
1.62 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Top clamp grooving tool for holding a 0,984" long double ended insert with 0.118" cutting width (designation GL3-DÂ… ), right handed with insert parallel to the shank for a maximum parting diameter of 3.150", shank height 1", width 1" and tool length 6" for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off.

Product Specifications
EDP Number7804146
Functional Height (Inch)1"
Cutting Width (Inch)0.118"
Max Cutting Depth (Inch)0.79"
Max Work Piece Parting Diameter (Inch)3.15"
Maximum Axial Groove Outside Diameter (mm)
Shank Height (Inch)1"
Shank Width (Inch)
Functional Length (Inch)6"
Clamping Type CodeSystem G
Direction of ToolRight
Country of originCzech Republic
