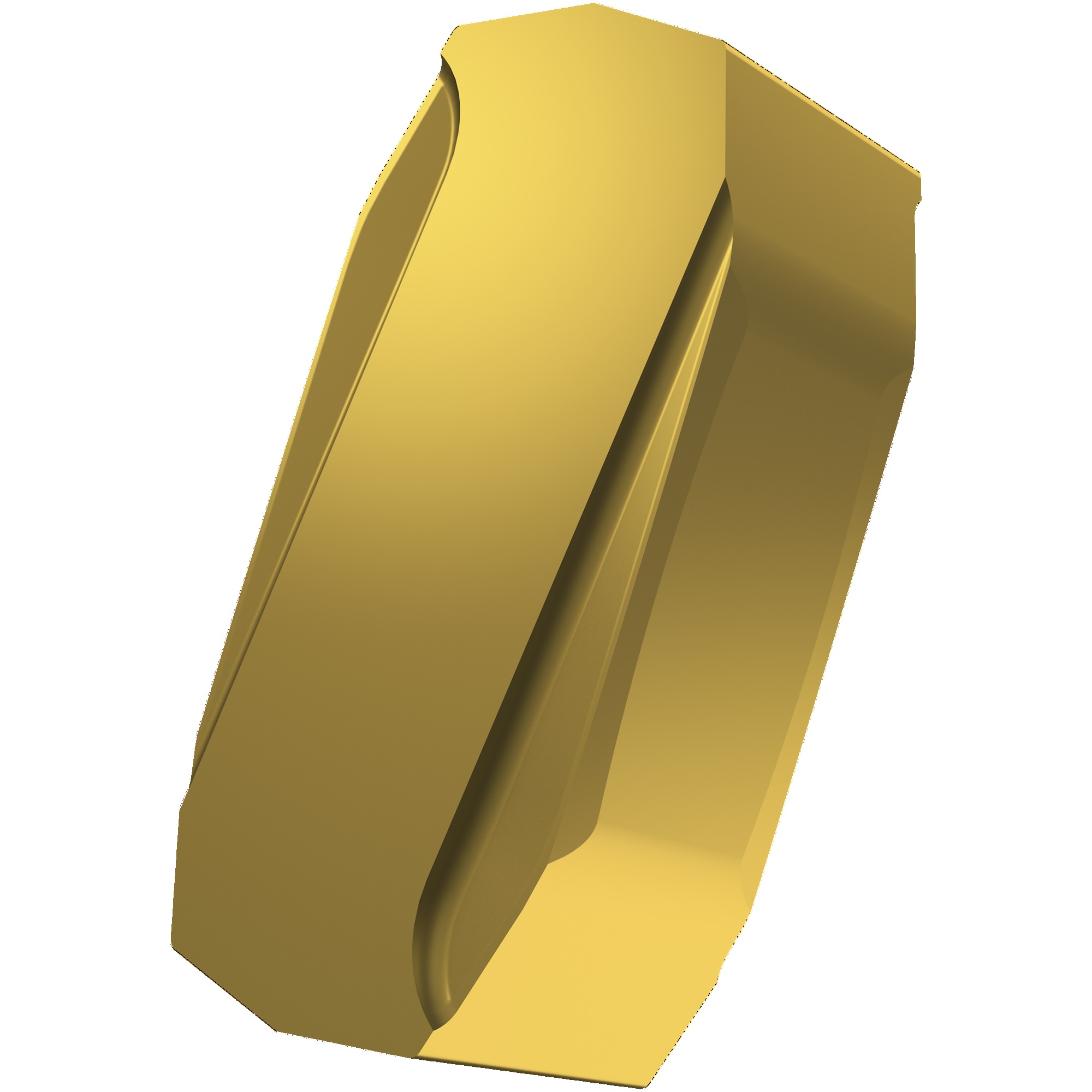

Pramet HZ 1309-100 P9:333TN | 0.394" Cutting width x 0.37" Thickness Grooving Insert

$58.80 $57.79
(You save $1.01)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Cutting Width (Inch):
25/64"
Cutting Width (Decimal Inch):
0.3940"
Cutting Width (mm):
10mm
Maximum Depth of Cut (Inch):
1/4"
Maximum Depth of Cut (Decimal Inch):
0.2440"
Maximum Depth of Cut (mm):
6.2mm
Finish/Coating:
333TN
interval quantity:
2
SKU:
23146091
UPC:
Weight:
0.06 LBS
Minimum Purchase:
2 units
Shipping:
Calculated at Checkout

Single ended keyway and slotting insert for broaching a width of 10 mm within tolerance class P9, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZÂ…-13 size broach.


Product Specifications
EDP Number 6755952
Cutting Width (Inch) 0.394"
Cutting Width (mm) 10 mm
Cutting Width Lower Tolerance (mm) -0.051 mm
Cutting Width Upper Tolerance (mm) -0.015 mm
Max Depth of Cut (mm) 6.2 mm
Max Depth of cut (Inch) 0.244"
Coating Property 1
Inscribed Circle Diameter (mm) 13 mm
Inscribed Circle Diameter (Inch) 0.512"
Insert Length (mm) 18.5 mm
Insert Length (Inch) 0.728"
Insert Thickness (mm) 9.4 mm
Insert Thickness (Inch) 0.37"
Insert Thickness Total (mm) 9.53 mm
Insert Thickness Total (Inch) 0.375"
Coating Process PVD
Coating 333TN
Surface Color Gold
Cutting Width Lower Tolerance (Inch) -0.002"
Cutting Width Upper Tolerance (Inch) -0.001"
Chipbreaker Manufacturer's Designation No chipbreaker
Country of originCzech Republic
