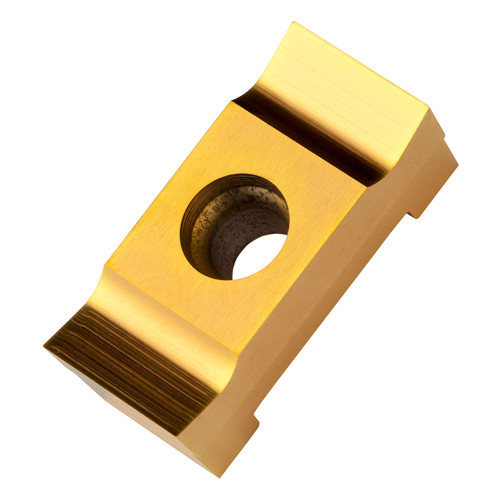

Pramet HZ/2 18-18 C11:333TN | 0.709" Width x 1.772" Insert Length Grooving Insert

$192.00 $188.70
(You save $3.30)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Cutting Width (Inch):
5/8"
Cutting Width (Decimal Inch):
0.7090"
Cutting Width (mm):
18mm
Maximum Depth of Cut (Inch):
15/32"
Maximum Depth of Cut (Decimal Inch):
0.4720"
Maximum Depth of Cut (mm):
12mm
Finish/Coating:
333TN
interval quantity:
2
SKU:
23146102
UPC:
Weight:
0.21 LBS
Minimum Purchase:
2 units
Shipping:
Free Shipping
Double ended keyway and slotting insert for broaching a width of 18 mm within tolerance class C11, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ-2Â…-18 size broach.

Product Specifications
EDP Number6755487
Cutting Width (Inch)0.709"
Cutting Width (mm)18 mm
Cutting Width Lower Tolerance (mm)0.095 mm
Cutting Width Upper Tolerance (mm)0.205 mm
Max Depth of Cut (mm)12 mm
Max Depth of cut (Inch)0.472"
Coating Property1
Insert Length (mm)45 mm
Insert Length (Inch)1.772"
Insert Thickness (mm)15.9 mm
Insert Thickness (Inch)0.626"
Insert Thickness Total (mm)16 mm
Insert Thickness Total (Inch)0.63"
Coating ProcessPVD
Coating333TN
Surface ColorGold
Cutting Width Lower Tolerance (Inch)0.004"
Cutting Width Upper Tolerance (Inch)0.008"
Chipbreaker Manufacturer's DesignationNo chipbreaker
Country of originCzech Republic
