Pramet LCMF 0516MO-MP:T8330 | 0.197" Width x 0.646" Insert Length Grooving Insert

$33.00 $25.48
(You save $7.52)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Cutting Width (Inch):
13/64"
Cutting Width (Decimal Inch):
0.1970"
Cutting Width (mm):
5mm
Finish/Coating:
T8330
interval quantity:
10
SKU:
23150914
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

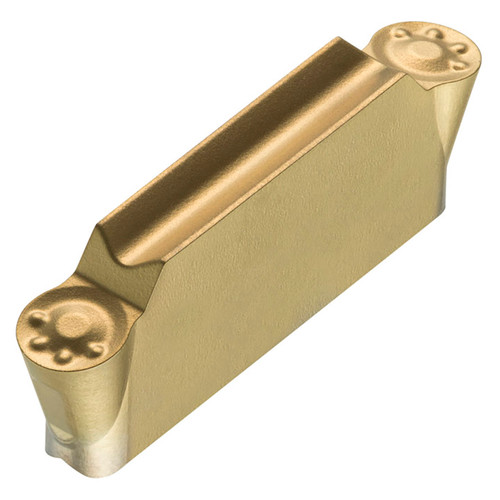

Double ended parting and grooving insert, 16.4 mm long with a 5 mm cutting width and 2.5 mm full radius, an accuracy according to tolerance class-M and chip-breaker MP, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with PRAMET GF..(RL) 05 and XLCCN 0516 parting and grooving tools.

Product Specifications
EDP Number6754312
Cutting Width (Inch)0.197"
Cutting Width (mm)5 mm
Cutting Width Lower Tolerance (mm)-0.05 mm
Cutting Width Upper Tolerance (mm)0.05 mm
Min Cutting Depth (mm)0.8 mm
Max Cutting Depth (mm)2.5 mm
Max Cutting Depth (Inch)0.098"
Coating Property1
Insert Length (mm)18.3 mm
Insert Length (Inch)0.646"
Corner Radius (mm)2.5 mm
Corner Radius (Inch)0.098"
Coating ProcessPVD
CoatingT8330
Surface ColorGold
Cutting Width Lower Tolerance (Inch)-0.002"
Cutting Width Upper Tolerance (Inch)0.002"
Chipbreaker Manufacturer's DesignationMP
Country of originCzech Republic
