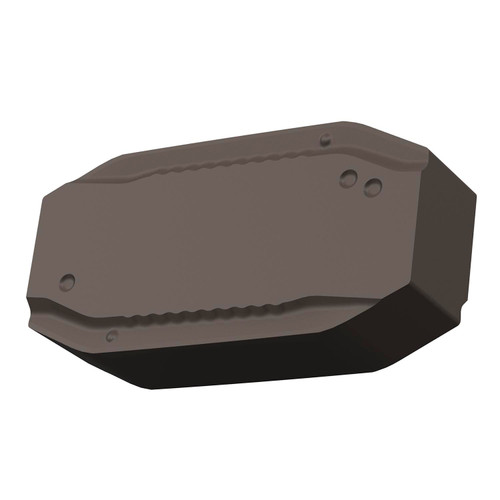

Double-sided negative barpeeling insert, rectangular with a length of 30.12 mm, 7.94 mm thick for 1.5 mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM with S02 cutting edge preperation, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide.
Product Specifications
| EDP Number | 7347212 |
| Min Cutting Depth (mm) | 0.5 mm |
| Max Depth of Cut (mm) | 1.5 mm |
| Max Depth of cut (Inch) | 0.059" |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Cutting Edge Length (mm) | 30.12 mm |
| Cutting Edge Length (Inch) | 1.186" |
| Insert Width (mm) | 12 mm |
| Insert Width (Inch) | 0.472" |
| Insert Thickness (mm) | 7.54 mm |
| Insert Thickness (Inch) | 0.297" |
| Major Cutting Edge Angle | 20 |
| Wiper Edge Length (mm) | 13 mm |
| Wiper edge Length (Inch) | 0.512" |
| Coating Process | MT-CVD |
| Coating | T7325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
| Chipbreaker Manufacturer's Designation | PM-S02 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
1-3/16"
Length (Decimal Inch):
1.1860"
Length (mm):
30.12mm
Thickness (Inch):
19/64"
Thickness (Decimal Inch):
0.2970"
Thickness (mm):
7.54mm
interval quantity:
5
