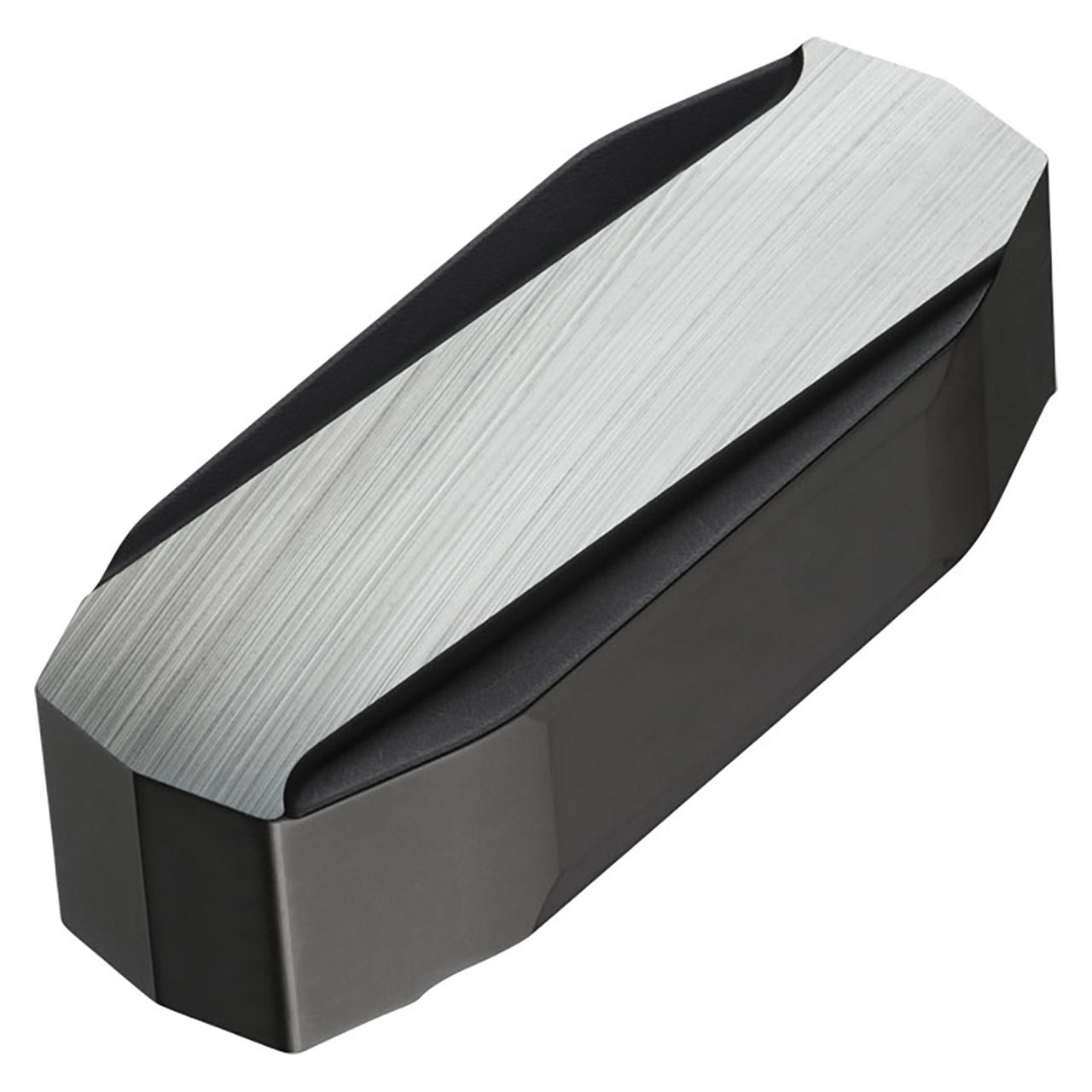

Double-sided negative barpeeling insert, rectangular with a length of 36.5 mm, 12 mm thick for 2 mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM with S03 cutting edge preperation, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for low strength stainless-steels.
Product Specifications
| EDP Number | 7347218 |
| Min Cutting Depth (mm) | 0.6 mm |
| Max Depth of Cut (mm) | 2 mm |
| Max Depth of cut (Inch) | 0.079" |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Cutting Edge Length (mm) | 36.5 mm |
| Cutting Edge Length (Inch) | 1.437" |
| Insert Width (mm) | 18 mm |
| Insert Width (Inch) | 0.709" |
| Insert Thickness (mm) | 12 mm |
| Insert Thickness (Inch) | 0.472" |
| Major Cutting Edge Angle | 20 |
| Wiper Edge Length (mm) | 16 mm |
| Wiper edge Length (Inch) | 0.63" |
| Coating Process | MT-CVD |
| Coating | T7325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.4 mm |
| Min Depth of Cut (Inch) | 0.016" |
| Chipbreaker Manufacturer's Designation | PM-S03 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
1-7/16"
Length (Decimal Inch):
1.4370"
Length (mm):
36.5mm
Thickness (Inch):
15/32"
Thickness (Decimal Inch):
0.4720"
Thickness (mm):
12mm
interval quantity:
5
