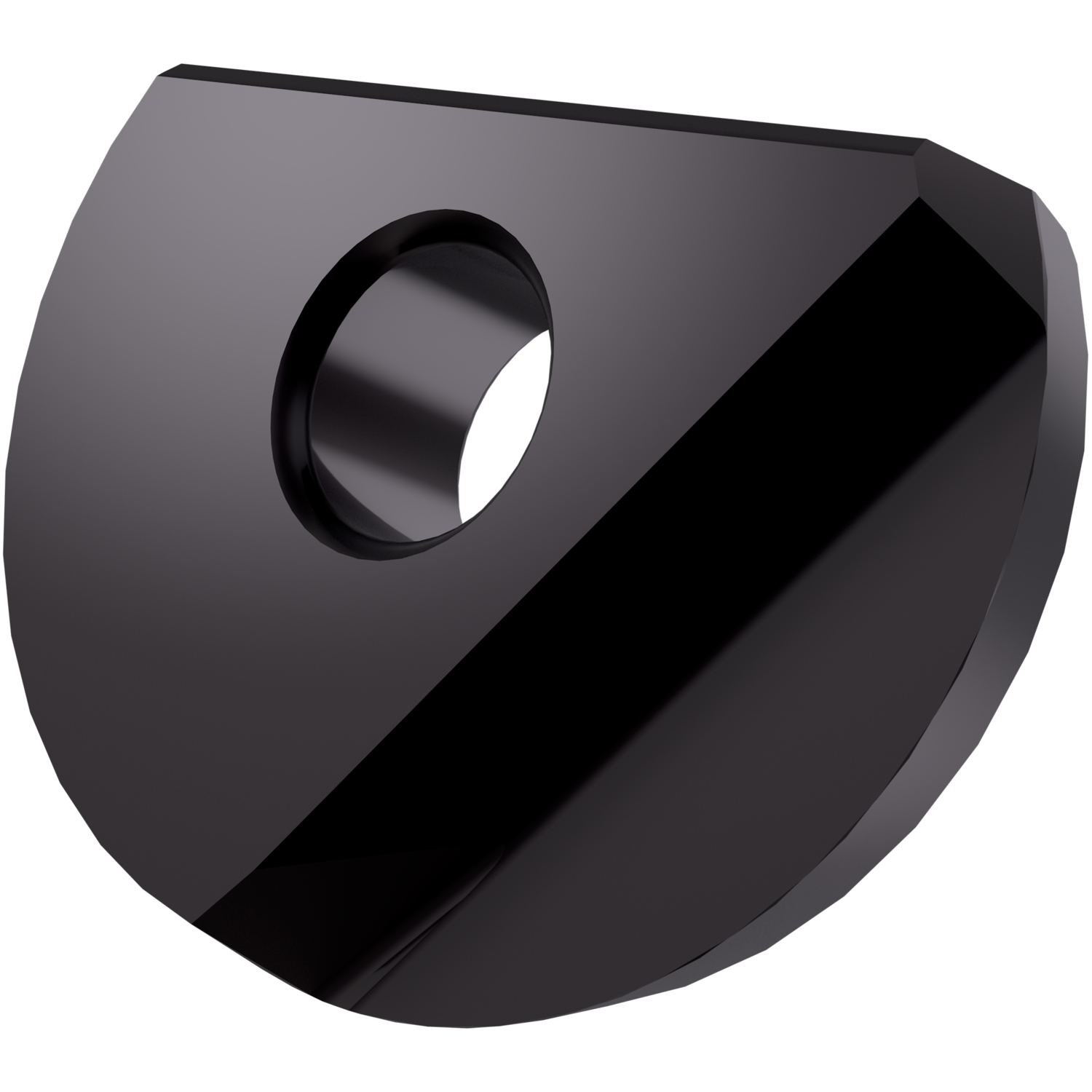

Ball nosed copy milling insert with a diameter of 10 mm for a maximum depth of cut of 1.0 mm, CL4 geometry and 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10-P20 and K10-K25 for machining of steel, cast-iron and hardened material with copy end mills K2-PPH.
Product Specifications
| EDP Number | 7156089 |
| Maximum Depth of Cut (mm) | 1 mm |
| Max Depth of Cut (Inch) | 0.039" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3 mm |
| Fixing Hole Diameter (Inch) | 0.118" |
| Insert Cutting Diameter (mm) | 10 mm |
| Insert Length (mm) | 8.5 mm |
| Insert Length (Inch) | 0.335" |
| Insert Thickness (mm) | 2.6 mm |
| Insert Thickness (Inch) | 0.102" |
| Coating Process | PVD |
| Coating | 8215 |
| Surface Color | Purple - Black |
| Insert Cutting Diameter (Inch) | 0.394" |
| Min Depth of Cut (mm) | 0.1 mm |
| Min Depth of Cut (Inch) | 0.004" |
