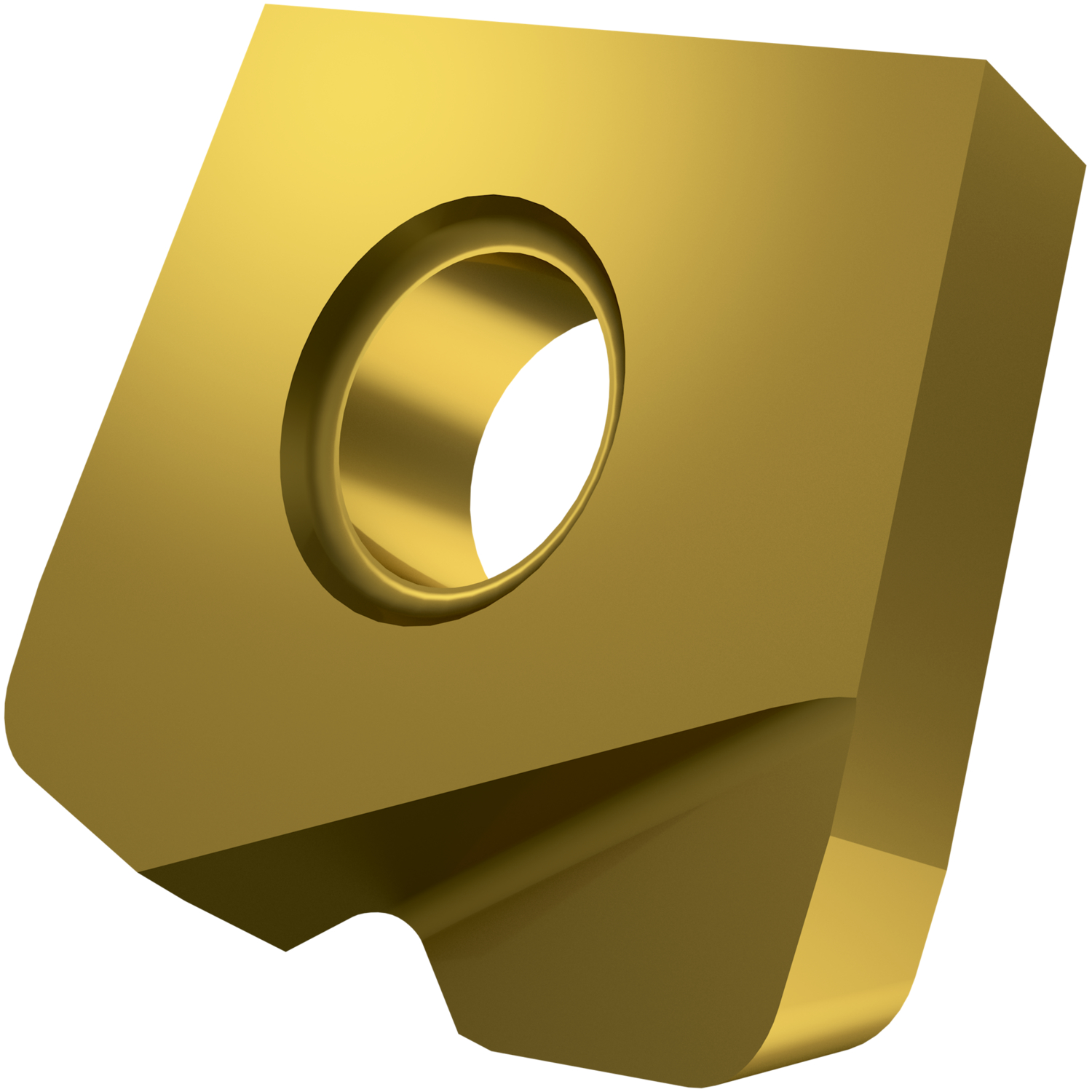

High feed copy milling insert with a diameter of 12 mm for a maximum depth of cut of 0.6 mm, CE1 geometry and M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy end mills K2-PPH.
Product Specifications
| EDP Number | 7447935 |
| Maximum Depth of Cut (mm) | 0.6 mm |
| Max Depth of Cut (Inch) | 0.024" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.5 mm |
| Fixing Hole Diameter (Inch) | 0.138" |
| Cutting Edge Effective Length (mm) | 3.9 mm |
| Cutting Edge Effective Length (Inch) | 0.154" |
| Insert Cutting Diameter (mm) | 12 mm |
| Insert Length (mm) | 10 mm |
| Insert Length (Inch) | 0.394" |
| Insert Thickness (mm) | 3 mm |
| Insert Thickness (Inch) | 0.118" |
| Wiper Edge Length (mm) | 0.6 mm |
| Wiper Edge Length (Inch) | 0.024" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Insert Cutting Diameter (Inch) | 0.472" |
| Min Depth of Cut (mm) | 0.1 mm |
| Min Depth of Cut (Inch) | 0.004" |
