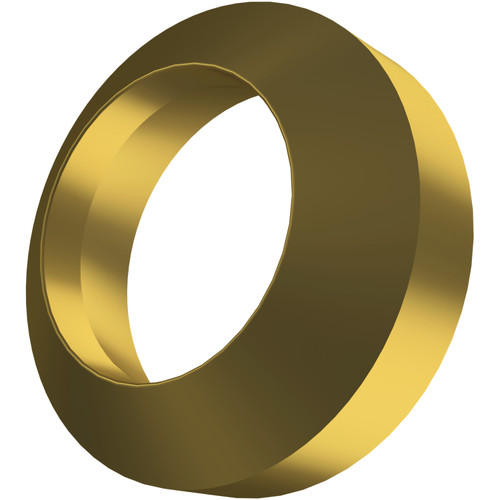

Scarfing ring with an outside diameter of 35 mm, an inside diameter of 22 mm, 12 mm thick and a working radius of 25.1 mm for tube diameters from 70 to 85 mm, 5040 MT-CVD coated WC-(Ti, Ta, Nb)C-Co carbide within ISO-grade ranges P25-P45 and M25-M35 for deburring the inside of steel and stainless-steel tubes and pipes.
Product Specifications
| EDP Number | 6753351 |
| Profile Radius (mm) | 25.1 mm |
| Coating Property | 1 |
| Inscribed Circle Diameter (mm) | 35 mm |
| Inscribed Circle Diameter (Inch) | 1.378" |
| Insert Diameter (mm) | 35 mm |
| Insert Cutting Diameter (mm) | 22 mm |
| Insert Thickness (mm) | 12 mm |
| Coating Process | MT-CVD |
| Coating | 5040 |
| Surface Color | Gold |
| Insert Cutting Diameter (Inch) | 0.866" |
| Chipbreaker Manufacturer's Designation | No chipbreaker |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Ships:
From Partner Facility
Brand:
Pramet
Inscribed Circle (Inch):
1-3/8"
Inscribed Circle (Decimal Inch):
1.3780"
Inscribed Circle (mm):
35mm
Thickness (Inch):
15/32"
Thickness (Decimal Inch):
0.4700"
Thickness (mm):
12mm
interval quantity:
5
