Pramet PSSNR 4040 S 19 | 45.00mm Head Length x 40.00mm Shank x 40.00mm Shank Width Lever lock Turning Toolholder

$159.96
Brand:
Pramet
Shank Width (Inch):
1-37/64"
Shank Width (Decimal Inch):
1.5748"
Shank Width (mm):
40.00mm
Overall Length (Decimal Inch):
10.3350"
Overall length (mm):
262.50mm
Shank Height (Inch):
1-37/64"
Shank Height (Decimal Inch):
1.5748"
Shank Height (mm):
40.00mm
interval quantity:
1
SKU:
55077697
Weight:
7.02 LBS
Shipping:
Calculated at Checkout
Pramet PSSNR 4040 S 19 | 45.00mm Head Length x 40.00mm Shank x 40.00mm Shank Width Lever lock Turning Toolholder

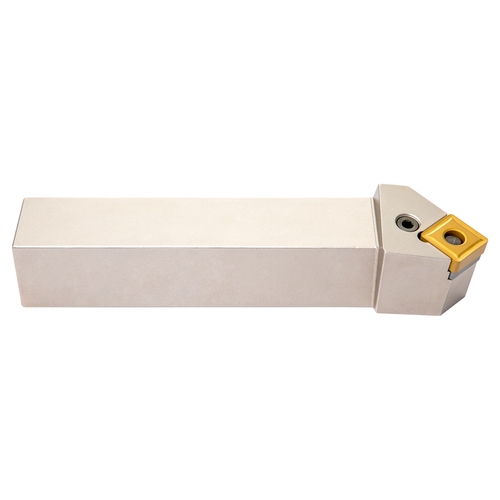

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation SN.. 1906.. ), right hand 45 degree side cutting with off-set shank, 40mm tool height x 40mm width x 250mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder.


Product Specifications
Manufacturer Part NumberPSSNR 4040 S 19
Overall length (mm)262.50mm
Head Length (mm)45.00mm
Functional Length (mm)250.00mm
Shank Height (mm)40.00mm
Shank Width (mm)40.00mm
Overall Length (Decimal Inch)10.335"
Functional Height (mm)40
Functional Width (mm)50
Product TypeLever lock Turning Toolholder
Country of OriginSpain
