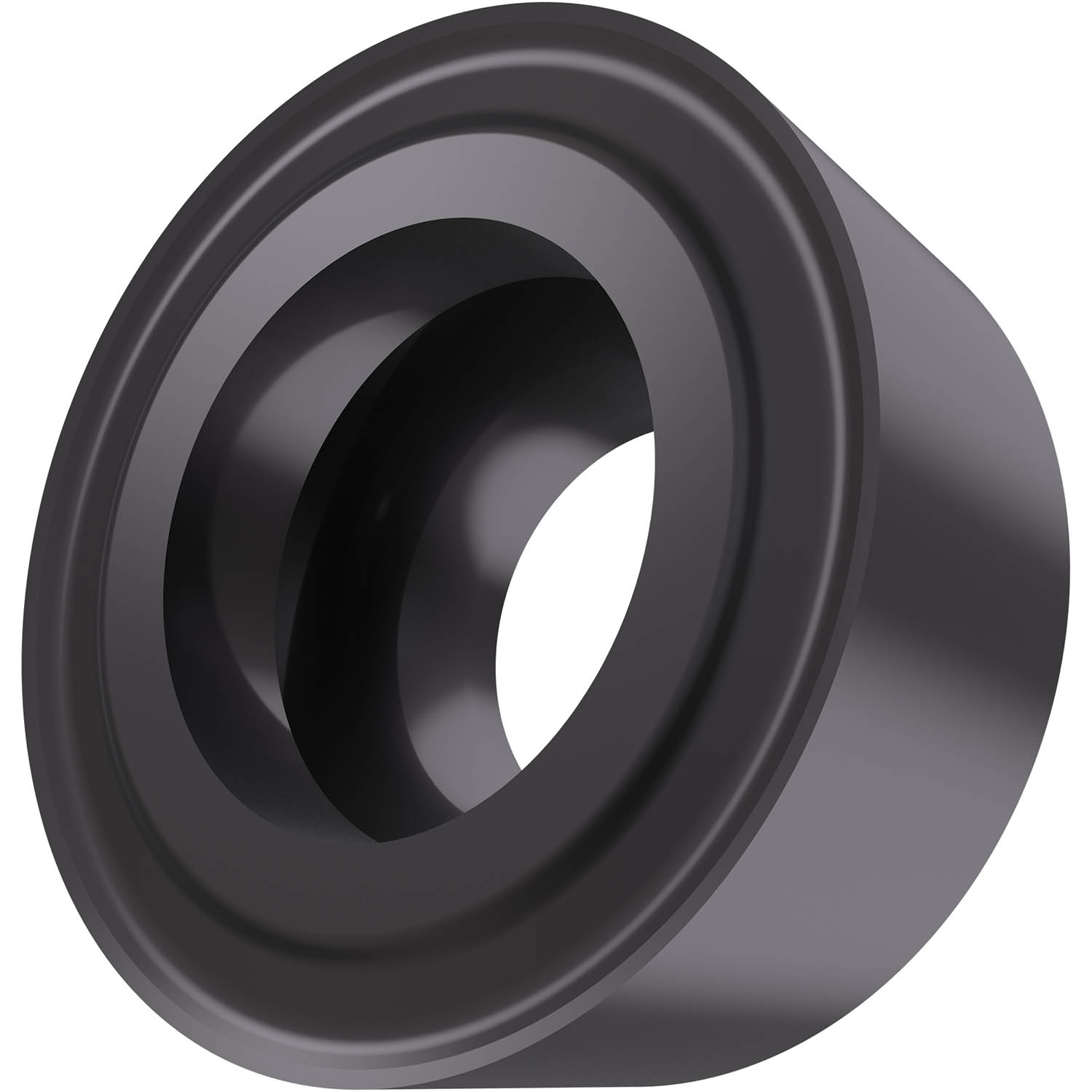

Single-sided positive turning insert, round with 7° clearance, a diameter of 10 mm, 3.97 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO range M01-M15, for fine to heavy machining of stainless-steels.
Product Specifications
| EDP Number | 7168661 |
| Max Depth of Cut (mm) | 4 mm |
| Max Depth of cut (Inch) | 0.157" |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Fixing Hole Diameter (Inch) | 0.173" |
| Insert Diameter (mm) | 10 mm |
| 0.394" | |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Coating Process | PVD |
| Coating | T6310 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.4 mm |
| Min Depth of Cut (Inch) | 0.016" |
| Chipbreaker Manufacturer's Designation | UR |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.97mm
interval quantity:
10
