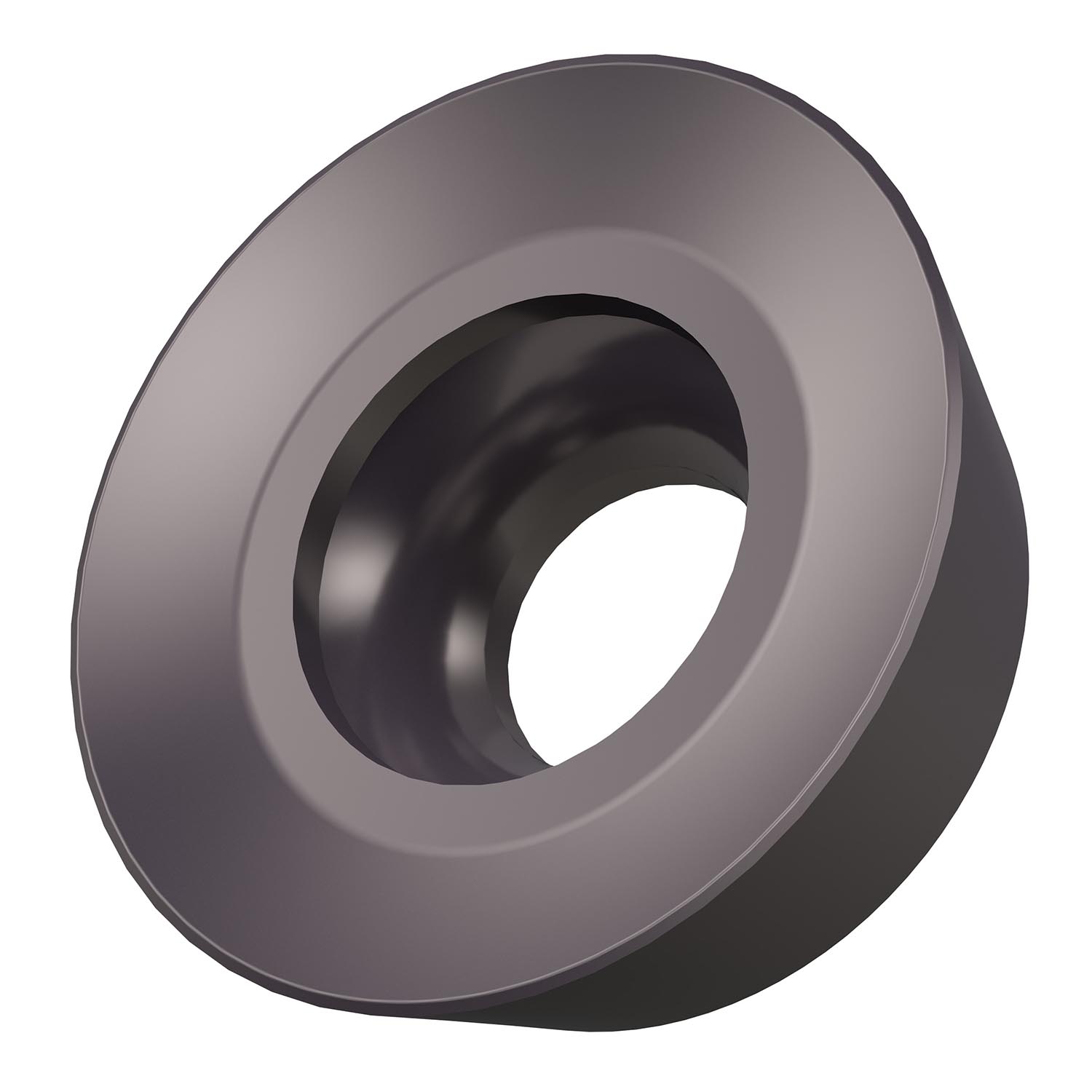

Single-sided milling insert RDMT 12T3 with chip-breakers, round for a maximum depth of cut of 3.0 mm, with an indexing accuracy according to ISO-tolerance class-M with cutting edges with facet, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with copy face mills SRD12.
Product Specifications
| EDP Number | 7343110 |
| Maximum Depth of Cut (mm) | 3 mm |
| Max Depth of Cut (Inch) | 0.118" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.9 mm |
| Fixing Hole Diameter (Inch) | 0.154" |
| Insert Diameter (mm) | 12 mm |
| Insert Diameter (Inch) | 0.472" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Coating Process | PVD |
| Coating | M8345 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
