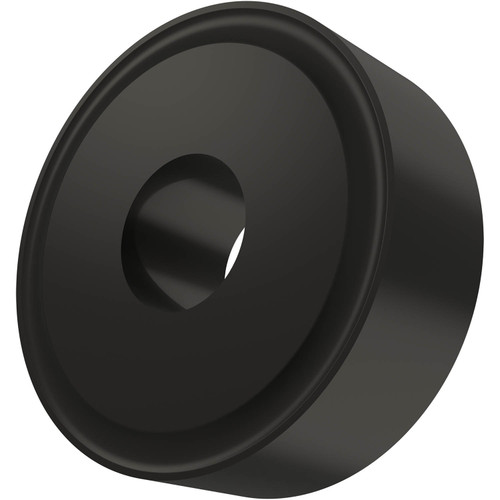

Double-sided negative turning insert, round with a diameter of 15.875 mm, 6.35 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker 08 with rounded cutting edges, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01-K15, for heavy to medium machining of cast-irons and hardened materials.
Product Specifications
| EDP Number | 6755851 |
| Max Depth of Cut (mm) | 6 mm |
| Max Depth of cut (Inch) | 0.236" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 6.35 mm |
| Fixing Hole Diameter (Inch) | 0.25" |
| Insert Diameter (mm) | 15.875 mm |
| 0.625" | |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Coating Process | MT-CVD |
| Coating | T5305 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
| Chipbreaker Manufacturer's Designation | 8 |
