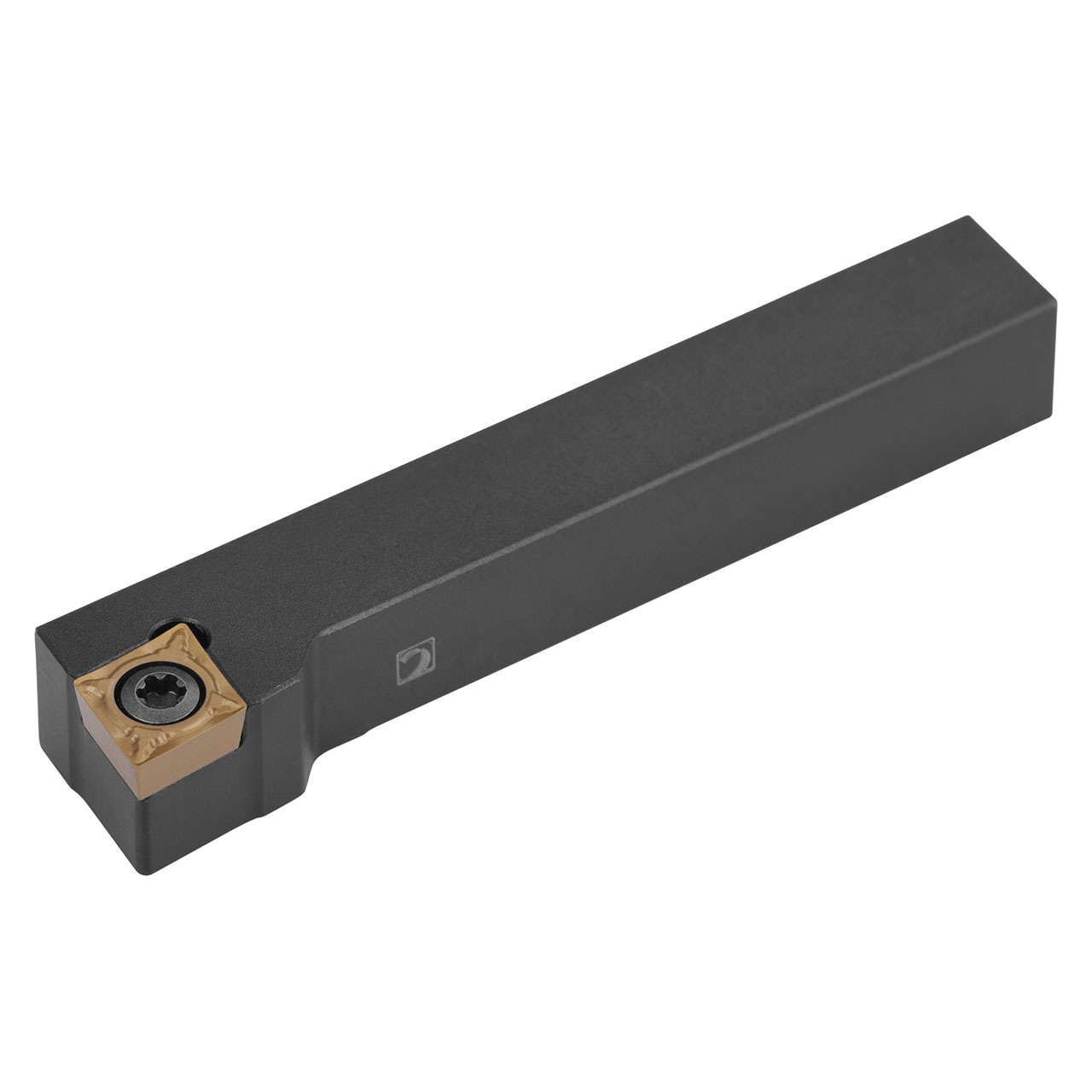

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 1/4'', 3/32'' thick (ANSI designation CC.. 21.5. ), right hand 95° side and end cutting with off-set shank, 3/8'' tool height x 3/8'' width x 2.1/2'' long for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6788656 |
| Functional Height (Inch) | 0.375" |
| Functional Width (Inch) | 0.5" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (Inch) | 0.375" |
| Shank Width (Inch) | |
| Functional Length (Inch) | 2.5" |
| Head Length (Inch) | 0.39" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
3/8"
Shank Width (Decimal Inch):
0.3750"
Shank Width (mm):
9.53mm
Shank Height (Inch):
3/8"
Shank Height (Decimal Inch):
0.3750"
Shank Height (mm):
9.53mm
