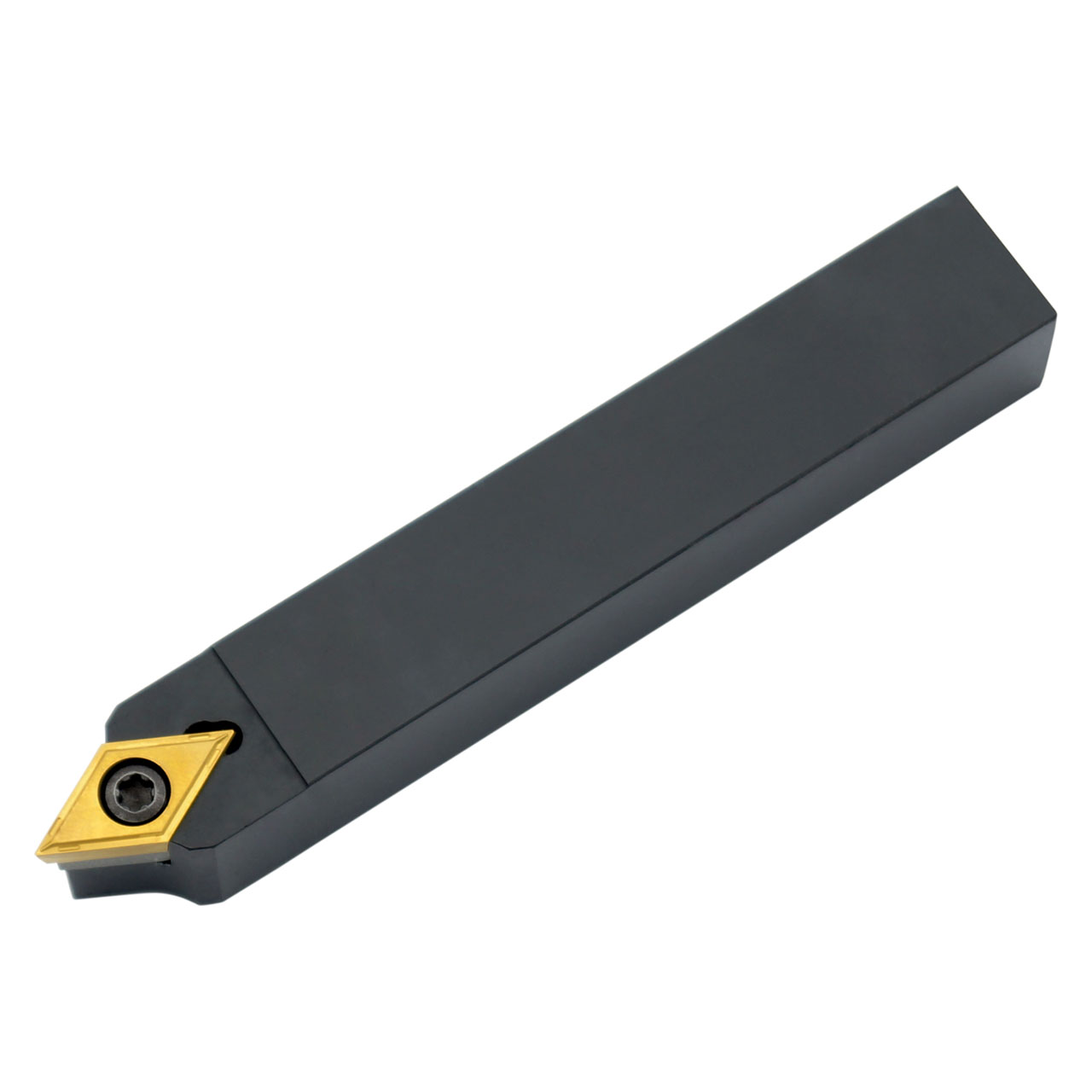

Screw clamp turning tool for holding a 55 Degree rhombus positive insert with an inscribed circle diameter of 1/4'', 3/32'' thick (ANSI designation DC.. 21.5. ), neutral hand 62.5 Degree, left and right side cutting, 3/8'' tool height x 3/8'' width x 2.1/2'' long for single and multi-directional copy turning.
Product Specifications
| EDP Number | 6788669 |
| Functional Height (Inch) | 0.375" |
| Functional Width (Inch) | 0.216" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Width (Inch) | |
| Functional Length (Inch) | 2.5" |
| Head Length (Inch) | 0.571" |
| Country of origin | Czech Republic |
