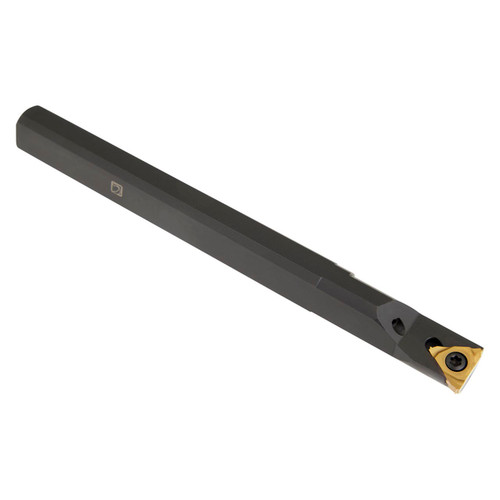

Screw clamp thread turning bar with 1 Degree helix angle for holding a triangle shaped insert with an inscribed circle diameter of 6.35 mm (designation TN 11NL.. ), left hand standard design with straight shank made of steel without coolant hole, 16 mm diameter and 125 mm overall length for internal threading, circlip grooving, and o-ring grooving.
Product Specifications
| EDP Number | 6757166 |
| Functional Height (mm) | 7 mm |
| Functional Width (mm) | |
| Inclination Angle | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Shank Height (mm) | 14 mm |
| Shank Width (mm) | 14.5 mm |
| Minimum Bore Diameter (mm) | |
| Body Diameter (mm) | 10 mm |
| Body Diameter (Inch) | 0.394" |
| Functional Length (mm) | 125 mm |
| Head Length (mm) | 25 mm |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Minimum Bore Diameter (Inch):
33/64"
Minimum Bore Diameter (Decimal Inch):
0.5100"
Minimum Bore Diameter (mm):
13mm
