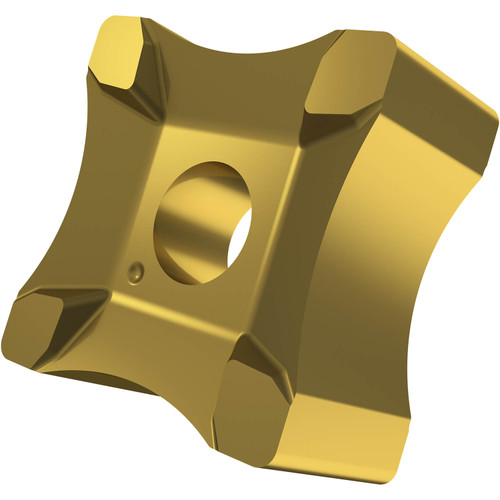

Pramet SNMX 15-R50:6640 | 0.625" Circle Diameter x 0.321" Thickness Turning Insert

$21.00 $12.97
(You save $8.03)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
5/8"
Length (Decimal Inch):
0.6250"
Length (mm):
15.875mm
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.875mm
Thickness (Inch):
21/64"
Thickness (Decimal Inch):
0.3210"
Thickness (mm):
8.15mm
interval quantity:
10
SKU:
23151956
UPC:
Weight:
0.05 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Double-sided scarfing insert, square with a main cutting edge length of 15.875 mm, 8.15 mm thick and a working radius of 50 mm for tube diameters from 58 to 73 mm, 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for deburring the outside of steel and stainless-steel tubes and pipes.

Product Specifications
EDP Number6755492
Profile Radius (mm)50 mm
Coating Property1
Fixing Hole Diameter (mm)5.16 mm
Fixing Hole Diameter (Inch)5.16"
Cutting Edge Length (mm)15.875 mm
Cutting Edge Length (Inch)0.625"
Inscribed Circle Diameter (mm)15.875 mm
Inscribed Circle Diameter (Inch)0.625"
Insert Thickness (mm)8.15 mm
Insert Thickness (Inch)0.321"
Coating ProcessMT-CVD
Coating6640
Surface ColorGold
Chipbreaker Manufacturer's DesignationWith chipbreaker -no designation
Country of originCzech Republic
