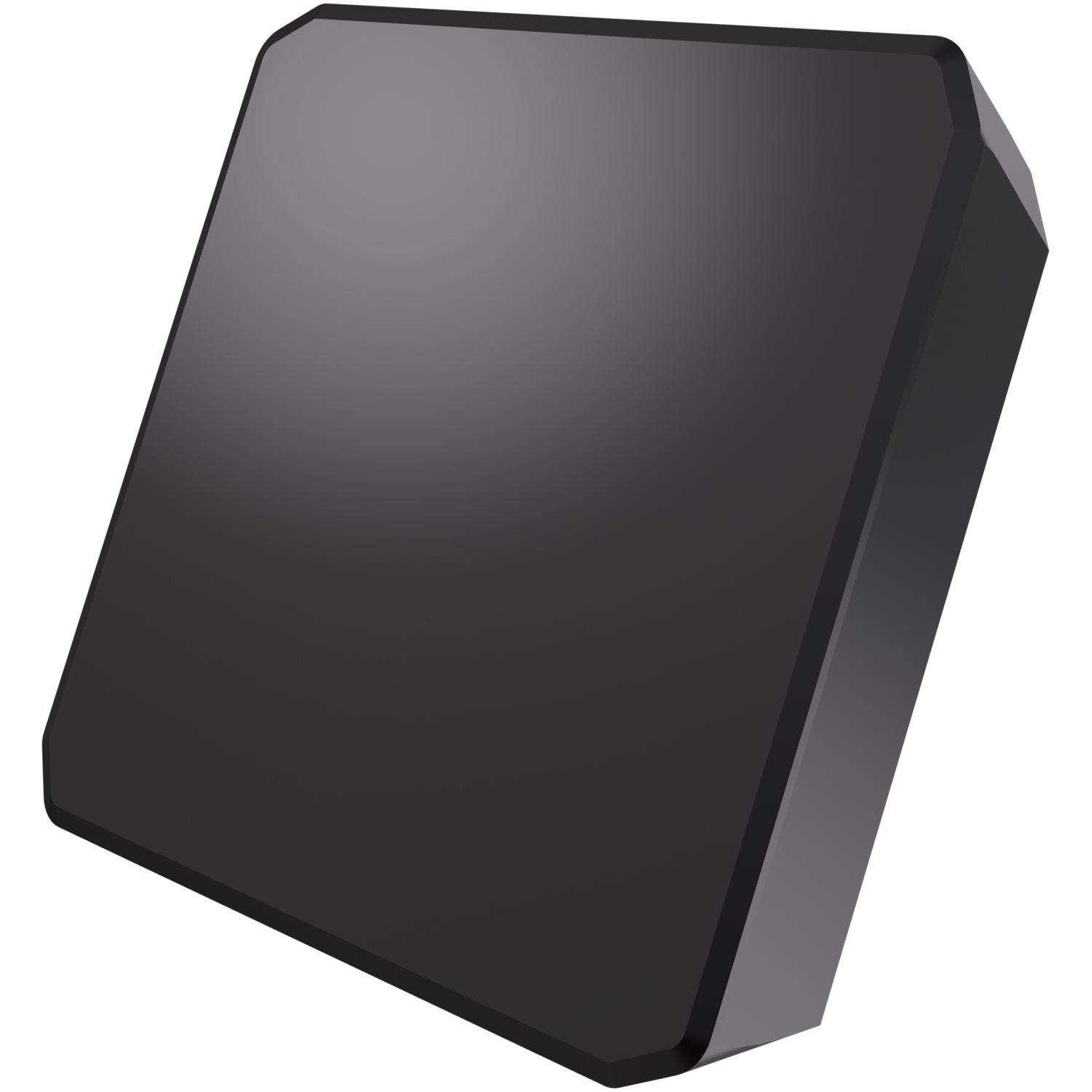

Single-sided milling insert SPGN 2506 with a plane rake surface, square for a maximum depth of cut of 18.0 mm, with an indexing accuracy according to ISO-tolerance class-G with rounded cutting edges and facet, M8346 PVD coated WC-Co carbide.
Product Specifications
| EDP Number | 6801313 |
| Maximum Depth of Cut (mm) | 18 mm |
| Max Depth of Cut (Inch) | 0.709" |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 25 mm |
| Cutting Edge Length (Inch) | 0.984" |
| Inscribed Circle Diameter (mm) | 25 mm |
| Inscribed Circle Diameter (Inch) | 0.984" |
| M-Dimension (mm) | 3.47 mm |
| M-Dimension (Inch) | 0.137" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Wiper Edge Length (mm) | 2.4 mm |
| Wiper Edge Length (Inch) | 0.945" |
| Coating Process | PVD |
| Coating | M8346 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 2 mm |
| Min Depth of Cut (Inch) | 0.079" |
