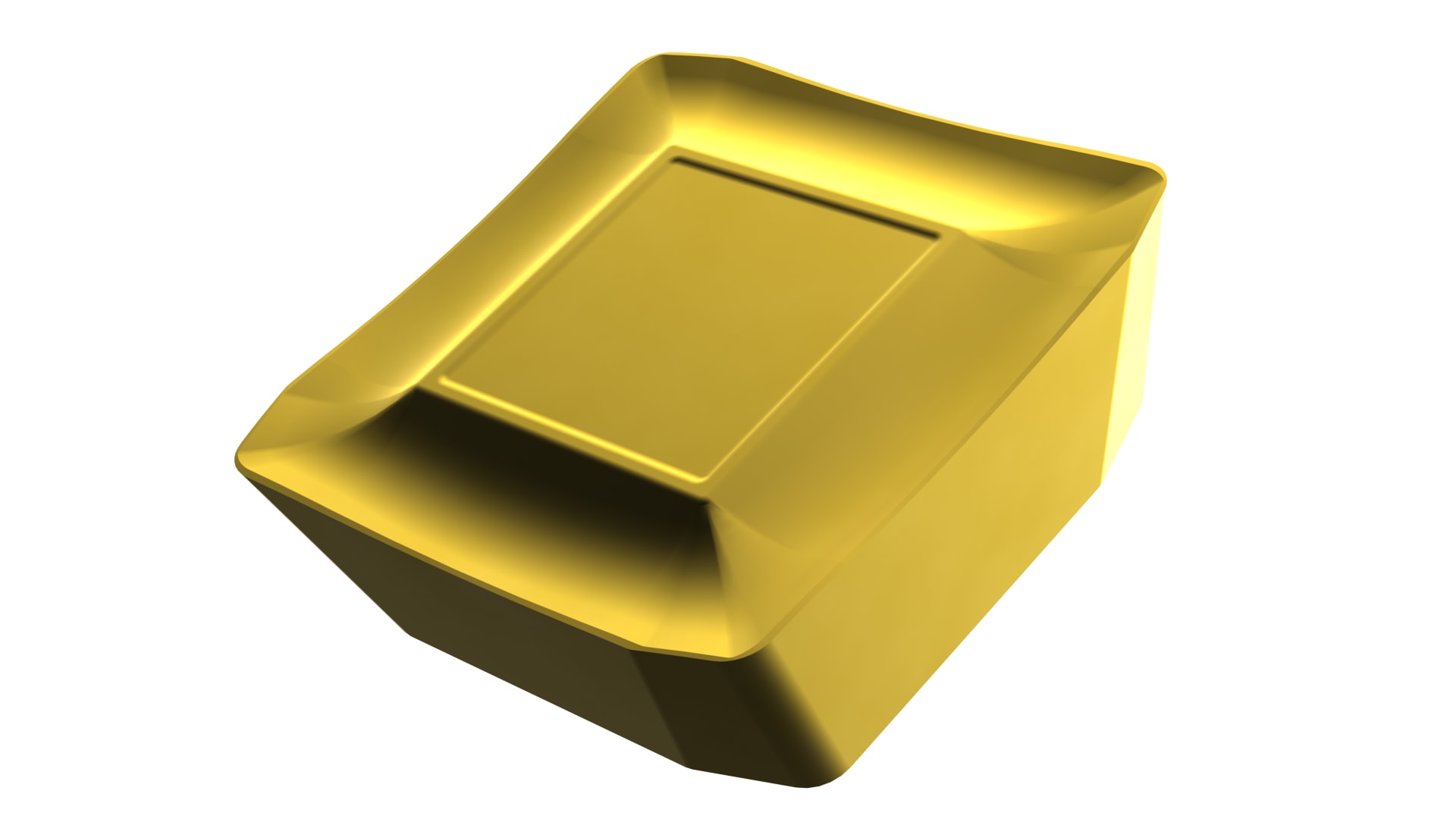

Single-sided milling insert SPKR 1504 with chip-breakers, square for a maximum depth of cut of 12.0 mm, with an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel.
Product Specifications
| EDP Number | 7451050 |
| Maximum Depth of Cut (mm) | 12 mm |
| Max Depth of Cut (Inch) | 0.472" |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 15.875 mm |
| Cutting Edge Length (Inch) | 0.625" |
| Inscribed Circle Diameter (mm) | 15.875 mm |
| Inscribed Circle Diameter (Inch) | 0.625" |
| M-Dimension (mm) | 1.22 mm |
| M-Dimension (Inch) | 0.048" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
10
