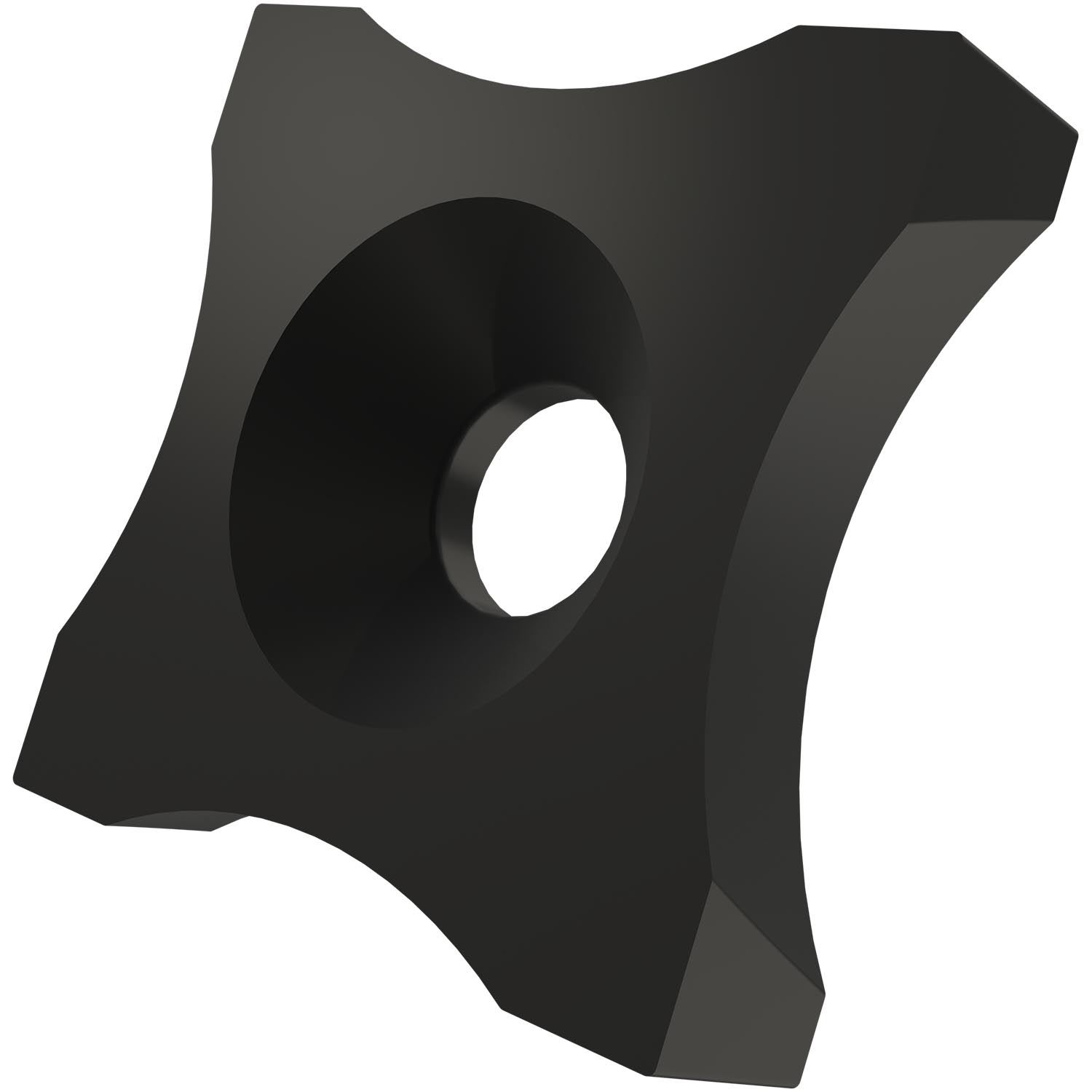

Single-sided scarfing insert, square with a main cutting edge length of 19.05 mm, 4.75 mm thick and a working radius of 15 mm for tube diameters from 22 to 28 mm, 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for deburring the outside of steel and stainless-steel tubes and pipes.
Product Specifications
| EDP Number | 7817024 |
| Profile Radius (mm) | 15 mm |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (Inch) | 5.15" |
| Cutting Edge Length (mm) | 19.05 mm |
| Inscribed Circle Diameter (mm) | 19.05 mm |
| Insert Thickness (mm) | 4.75 mm |
| Coating Process | MT-CVD |
| Coating | 6640 |
| Surface Color | Gold |
| Chipbreaker Manufacturer's Designation | No chipbreaker |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
3/4"
Length (Decimal Inch):
0.7500"
Length (mm):
19.05mm
Inscribed Circle (Inch):
3/4"
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1900"
Thickness (mm):
4.75mm
interval quantity:
10
