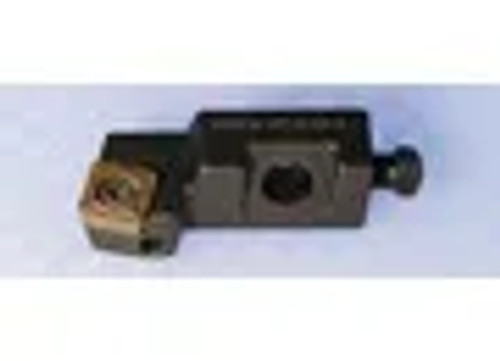

ISO Turning cartridge with screw clamp for holding a triangular positive insert with an inscribed circle diameter of 6.35 mm, 2.38 mm thick (ISO designation TC.. 1102.. ), in accordance with DIN 4985 right hand 90 Degree side cutting with off-set shank for taper turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6757372 |
| Functional Height (mm) | 10 mm |
| Functional Width (mm) | 14 mm |
| Shank Height (mm) | 15 mm |
| Shank Width (mm) | 11 mm |
| Minimum Bore Diameter (mm) | 40 mm |
| Functional Length (mm) | 50 mm |
| Country of origin | Czech Republic |
