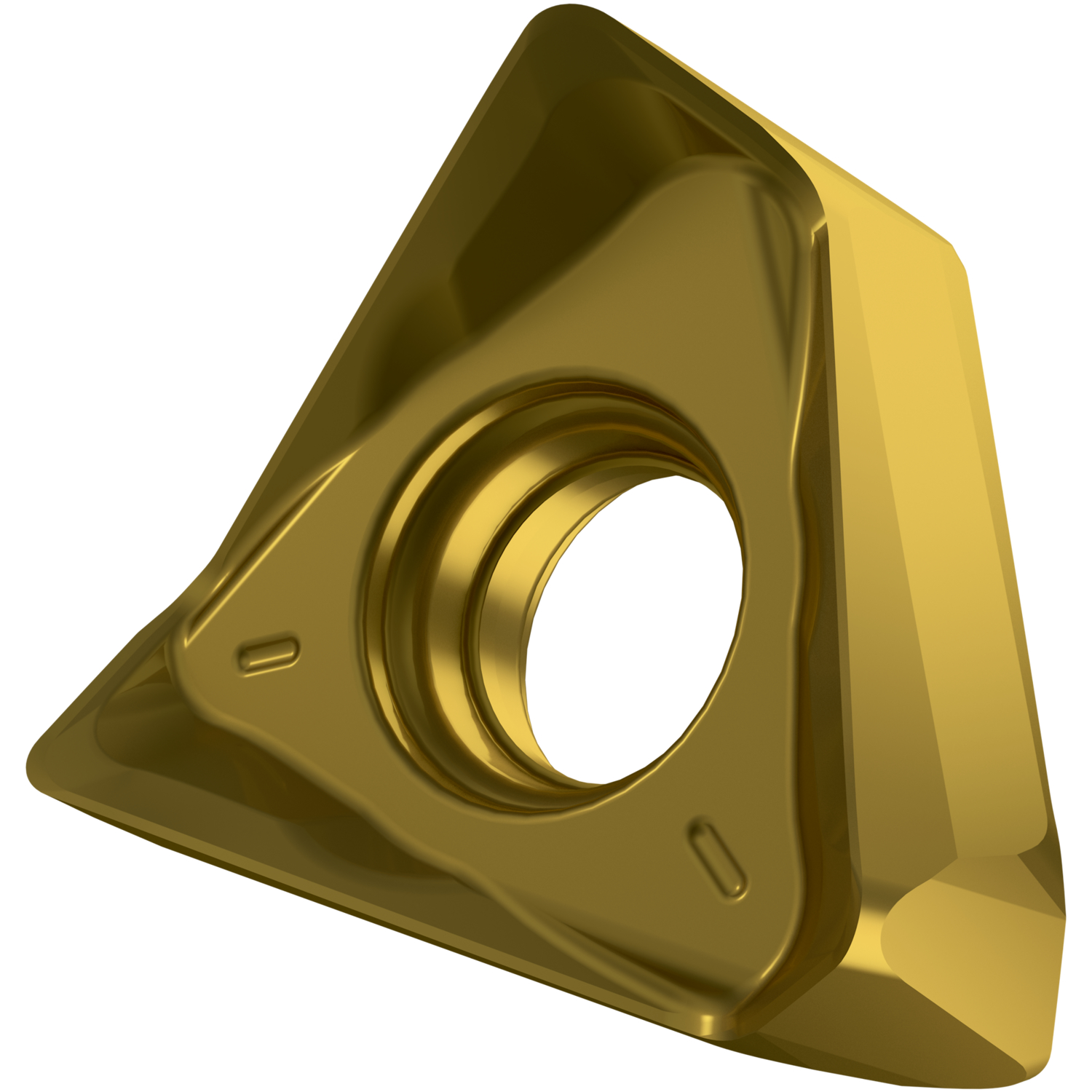

Double-sided milling insert TNGX 1606, triangular for a maximum depth of cut of 10.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder face mills STN16.
Product Specifications
| EDP Number | 8019795 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Cutting Edge Length (mm) | 16.5 mm |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Insert Thickness (mm) | 6.58 mm |
| Corner Radius (mm) | 0.8 mm |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
10
