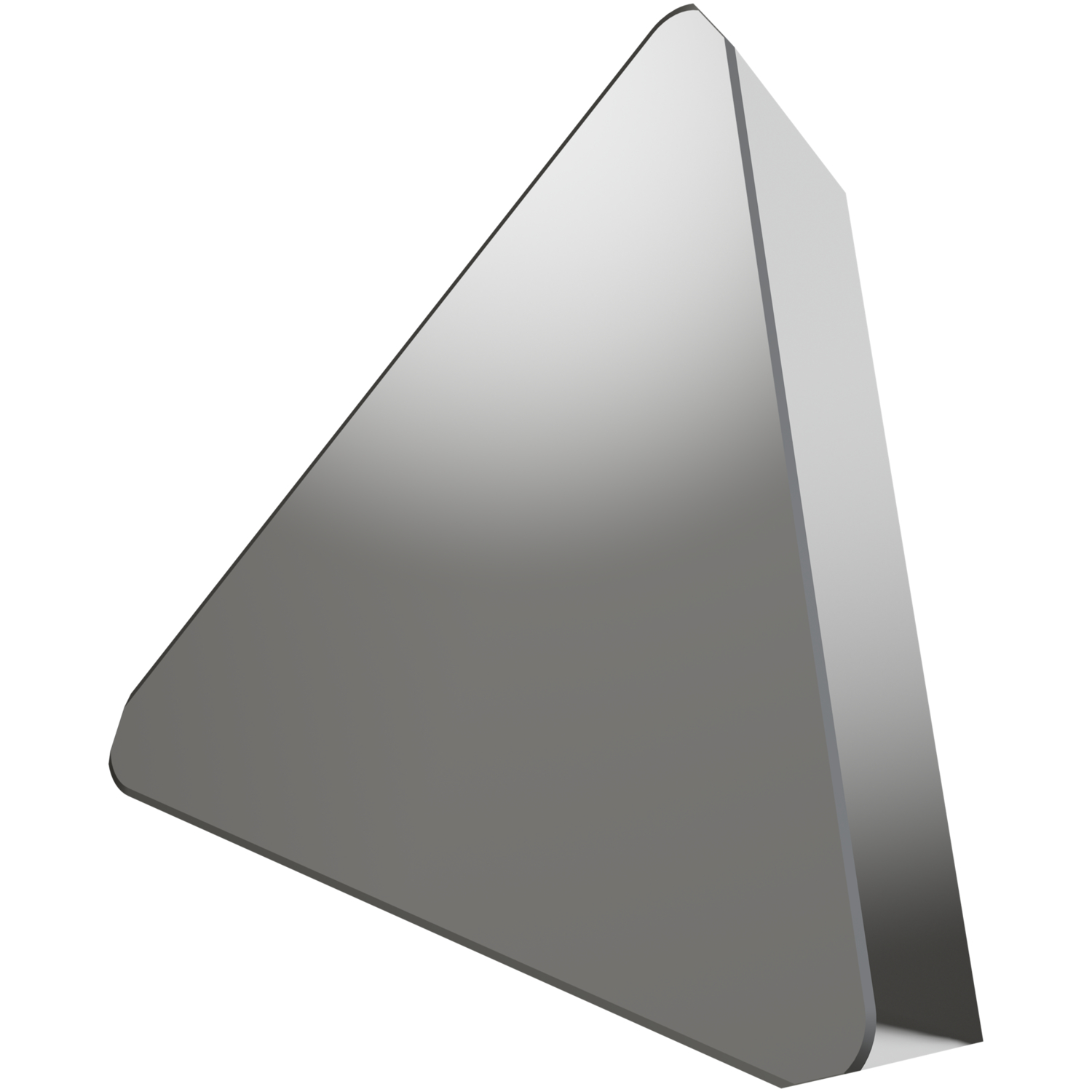

Single-sided milling insert TPKN 2204 with a plane rake surface, triangular for a maximum depth of cut of 17.0 mm, with an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, S26 uncoated WC-(Ti, Ta, Nb)C-Co carbide.
Product Specifications
| EDP Number | 6751623 |
| Maximum Depth of Cut (mm) | 17 mm |
| Max Depth of Cut (Inch) | 0.669" |
| Cutting Edge Length (mm) | 22 mm |
| Cutting Edge Length (Inch) | 0.866" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| M-Dimension (mm) | 3.55 mm |
| M-Dimension (Inch) | 0.14" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Wiper Edge Length (mm) | 1.5 mm |
| Wiper Edge Length (Inch) | 0.059" |
| Corner Chamfer Length (mm) | 1.2 mm |
| Coating | S26 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
