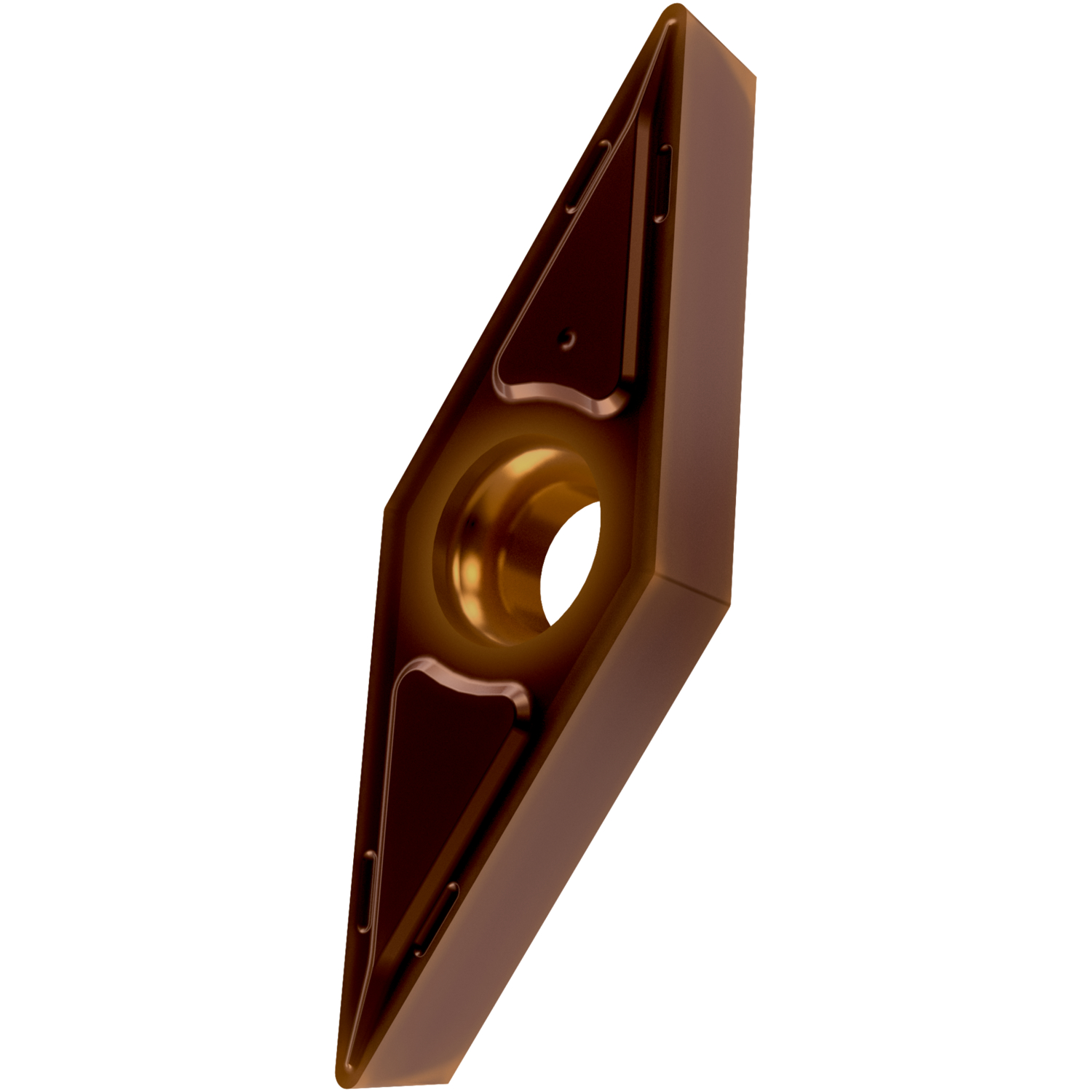

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 7.94 mm, 3.18 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for fine to medium machining of steels.
Product Specifications
| EDP Number | 7977273 |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 3.4 mm |
| Fixing Hole Diameter (Inch) | 0.134" |
| Cutting Edge Length (mm) | 13.8 mm |
| Cutting Edge Length (Inch) | 0.543" |
| Inscribed Circle Diameter (mm) | 7.94 mm |
| Inscribed Circle Diameter (Inch) | 0.313" |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating Process | PVD |
| Coating | T8430 |
| Surface Color | Golden - Brown |
| Chipbreaker Manufacturer's Designation | FF2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
35/64"
Length (Decimal Inch):
0.5430"
Length (mm):
13.8mm
Inscribed Circle (Inch):
5/16"
Inscribed Circle (Decimal Inch):
0.3130"
Inscribed Circle (mm):
7.94mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.4mm
interval quantity:
10
