Pramet VCGW 2.521:T5305 | 0.313" Circle Diameter x 3.18 mm Thickness T5305 Grade Turning Insert - All Industrial Tool Supply

Pramet VCGW 2.521:T5305 | 0.313" Circle Diameter x 3.18 mm Thickness T5305 Grade Turning Insert

$13.65 $9.69
(You save $3.96)
Total Price: $96.90

This product is sold in increments of 10

Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
35/64"
Length (Decimal Inch):
0.5430"
Length (mm):
13.8mm
Inscribed Circle (Inch):
5/16"
Inscribed Circle (Decimal Inch):
0.3130"
Inscribed Circle (mm):
7.94mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.4mm
SKU:
23149818
UPC:
Weight:
0.14 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

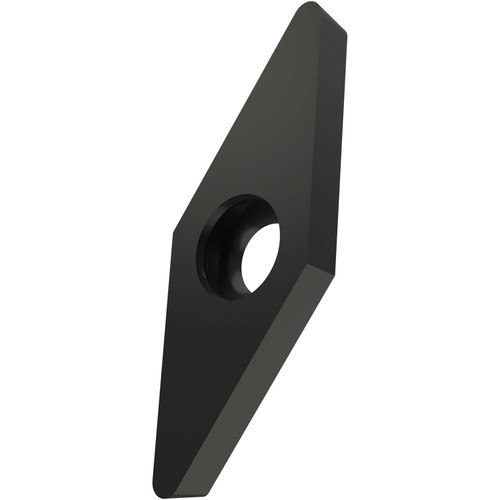

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 7.94 mm, 3.18 mm thick, 0.4 mm nose radius and indexing accuracy according to ISO-tolerance class-G, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01-K15, for fine machining of cast-irons.

Product Specifications
EDP Number6756219
Max Depth of Cut (mm)3.3 mm
Max Depth of cut (Inch)0.13"
Coating Property1
Fixing Hole Diameter (mm)3.4 mm
Fixing Hole Diameter (Inch)0.134"
Cutting Edge Length (mm)13.8 mm
Cutting Edge Length (Inch)0.543"
Inscribed Circle Diameter (mm)7.94 mm
Inscribed Circle Diameter (Inch)0.313"
Insert Thickness (mm)3.18 mm
Insert Thickness (Inch)0.125"
Corner Radius (mm)0.4 mm
Corner Radius (Inch)0.016"
Coating ProcessMT-CVD
CoatingT5305
Surface ColorBlack
Min Depth of Cut (mm)0.4 mm
Min Depth of Cut (Inch)0.016"
Chipbreaker Manufacturer's DesignationNo chipbreaker
